- Country
- Belgium
- Manufacturer / Brand
- ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi
- Year
- 1969
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 79768

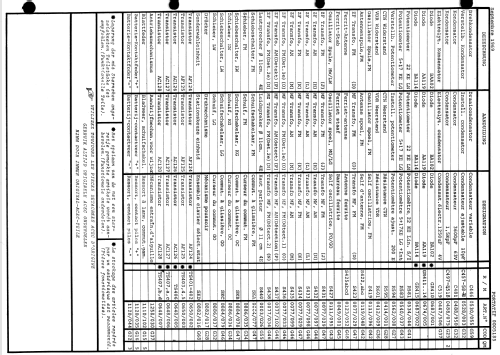

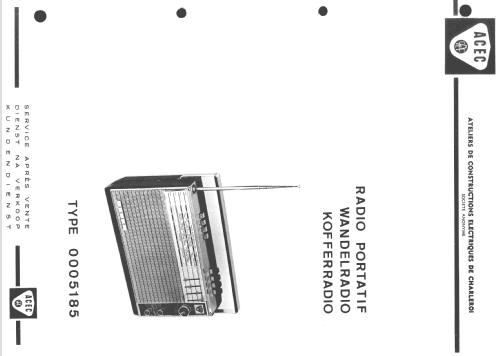

service manual

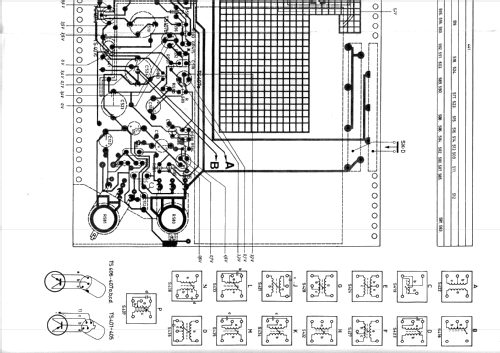

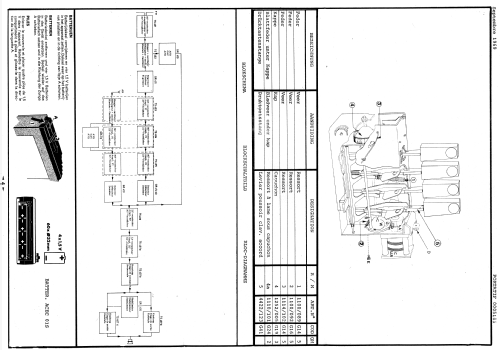

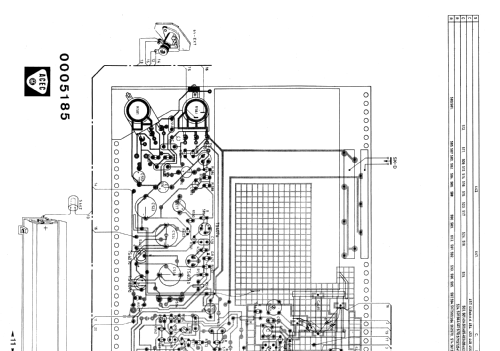

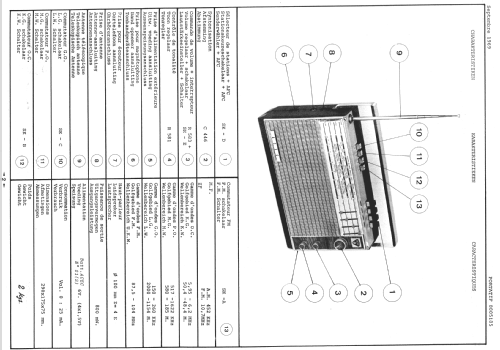

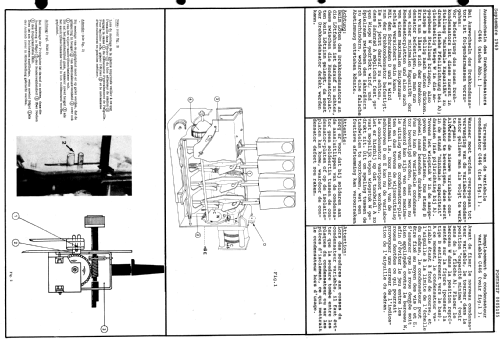

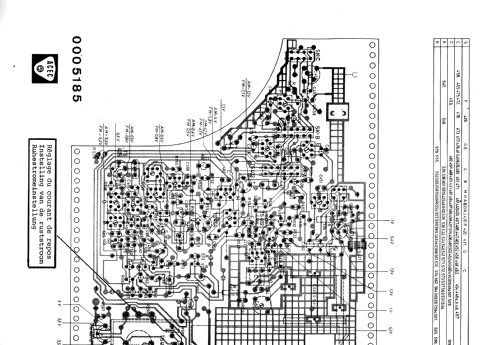

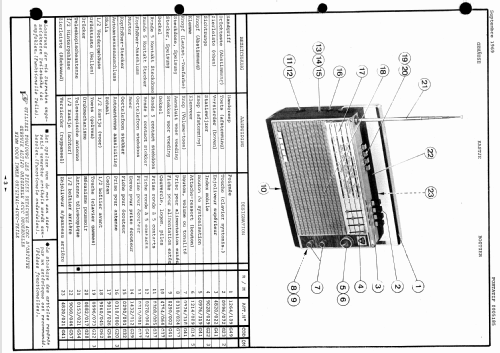

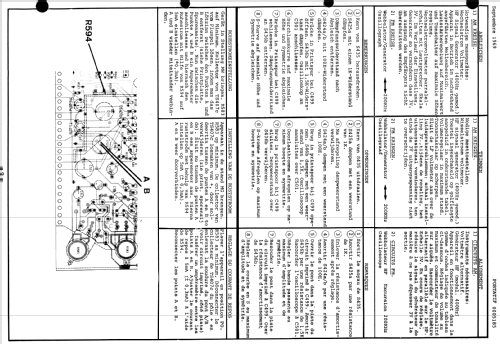

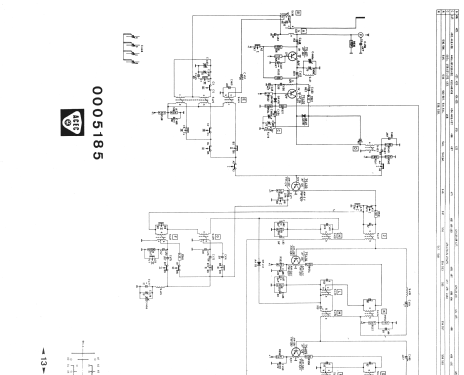

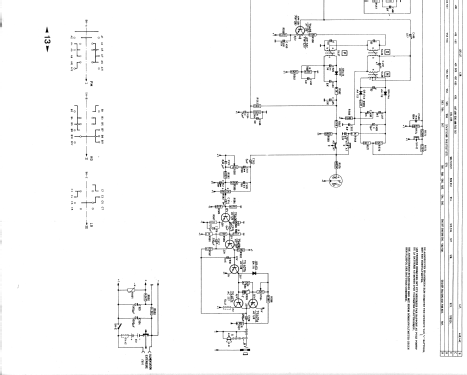

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 10
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Dry Batteries / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 5185 - ACEC, Ateliers de
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 290 x 175 x 75 mm / 11.4 x 6.9 x 3 inch
- Net weight (2.2 lb = 1 kg)
- 2 kg / 4 lb 6.5 oz (4.405 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Hugo Sneyers. See "Data change" for further contributors.
- Other Models
-
Here you find 256 models, 252 with images and 42 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from ACEC, Ateliers de Constructions Électriques de Charleroi; Charleroi
