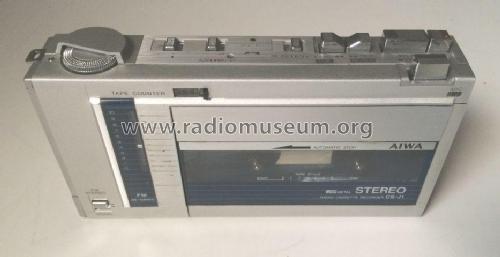

Stereo Radio Cassette Recorder CS-J1
Aiwa Co. Ltd.; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Aiwa Co. Ltd.; Tokyo
- Year
- 1981 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 215795
- Number of Transistors
- 17
- Semiconductors
- Main principle
- Superhet with RF-stage
- Wave bands
- FM Broadcast Band Only
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Dry Batteries / AA: 3 x 1.5 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Various materials
- from Radiomuseum.org
- Model: Stereo Radio Cassette Recorder CS-J1 - Aiwa Co. Ltd.; Tokyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 175 x 82 x 32 mm / 6.9 x 3.2 x 1.3 inch
- Notes
-
FM stereo (headphone)/mono; balance, built-in microphone, operate led indicator, automatic stop, tape counter.
Detachable rod antenna , Metal / Normal function
4 ICs, 17 transistors, 8 diodes
- Net weight (2.2 lb = 1 kg)
- 0.520 kg / 1 lb 2.3 oz (1.145 lb)
- Author
- Model page created by Felice Nicolini. See "Data change" for further contributors.
