• Country
• Japan

• Manufacturer / Brand
• Akai Electric Co., Ltd.; Tokyo

• Year
• 1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 144940

• Number of Transistors
• 39

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Power out
• 124 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

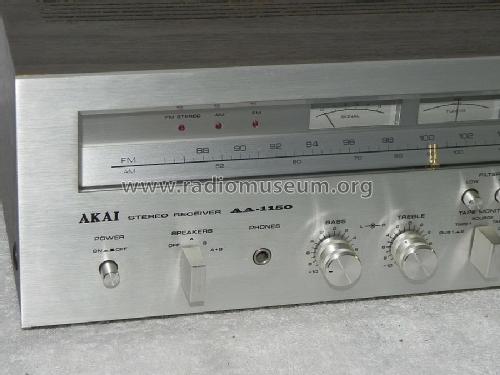

• Model: Stereo Receiver AA-1150 - Akai Electric Co., Ltd.; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 480 x 155 x 345 mm / 18.9 x 6.1 x 13.6 inch

• Notes
• AM/FM-Stereo-Receiver mit 2 x 62 Watt Sinus an 4 Ohm.
  Tuner 4-fach Abstimmung mit Schwungradantrieb über eine lineare Flutlichtskala. AM/FM-Feldstärke- und FM-Ratio-Mitte-Anzeige.
  39 Transistoren, 24 Dioden, 4 IC's und 1 FET.

• Net weight (2.2 lb = 1 kg)
• 11.7 kg / 25 lb 12.3 oz (25.771 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
