• Country
• Italy

• Manufacturer / Brand
• Allocchio Bacchini (Radialba); Milano

• Year
• 1955–1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 106294

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF85 EABC80 EM4 EL84 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 465/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage

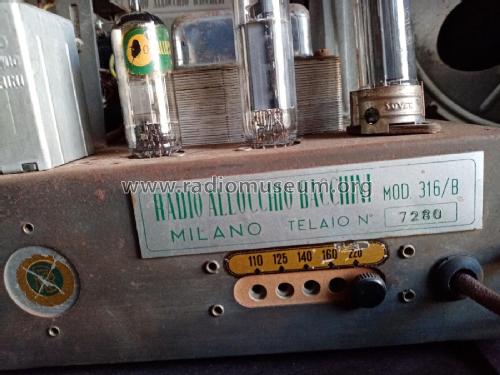

• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker

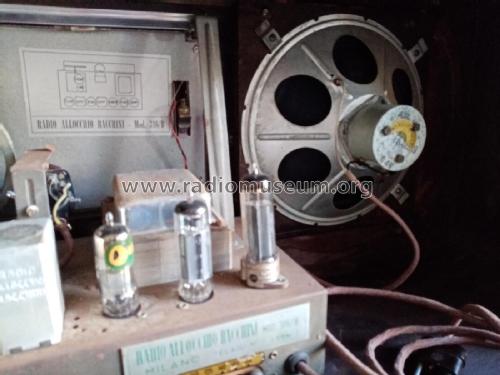

• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

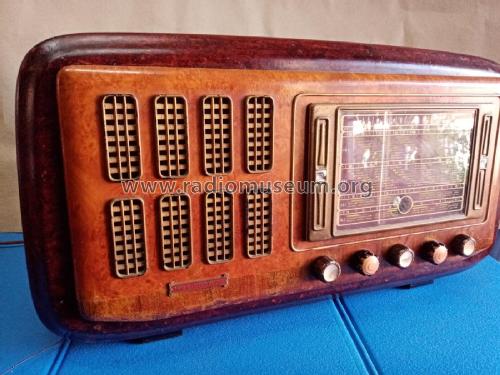

• Model: 316B - Allocchio Bacchini Radialba;

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 680 x 360 x 290 mm / 26.8 x 14.2 x 11.4 inch

• Notes
• Gamme d'onda: 2 medie, 2 corte, FM.
  Wave bands: 2× BC, 2× SW, FM.

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Price in first year of sale
• 72,000.00 ITL

• Source of data
• Guida Pratica Antique Radio II (2000)

• Mentioned in
• Catalogo ANIE (1955-56 e 1956-57)

• Literature/Schematics (1)
• -- Schematic (D.E. Ravalico, Il Radiolibro, 16° edizione, 1957, Hoepli)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
