• Country
• Italy

• Manufacturer / Brand
• Allocchio Bacchini (Radialba); Milano

• Year
• 1940 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 224174

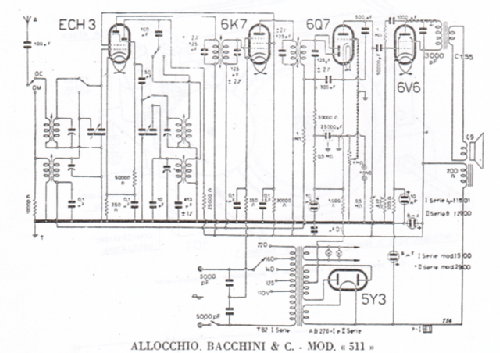

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

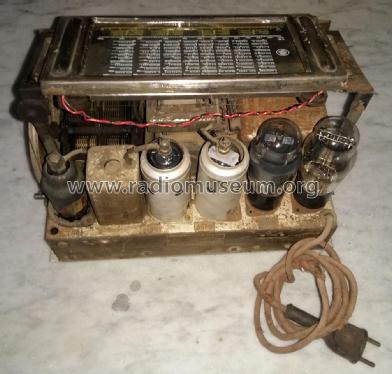

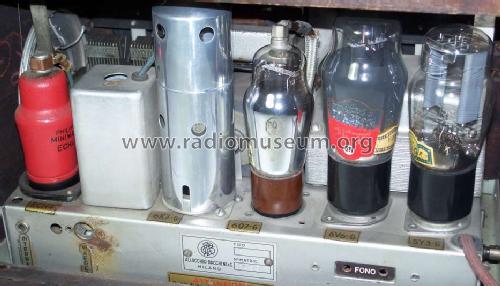

• Valves / Tubes
• ECH4 6K7G 6Q7G 6V6G 5Y3G

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

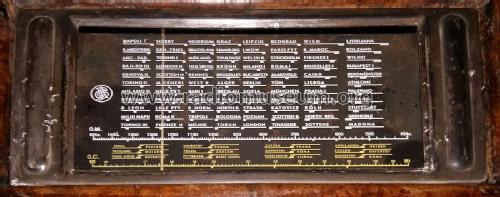

• Wave bands
• Broadcast and Short Wave (SW).

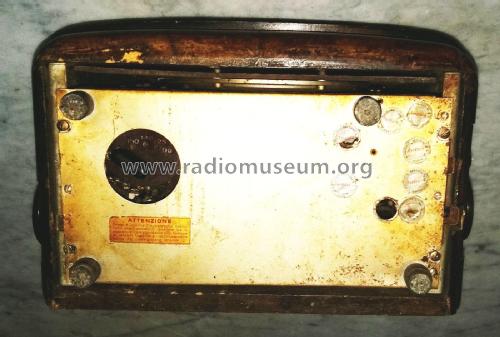

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

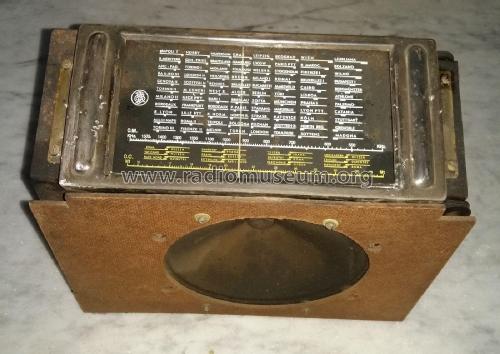

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16 cm = 6.3 inch

• Material
• Wooden case

• from Radiomuseum.org

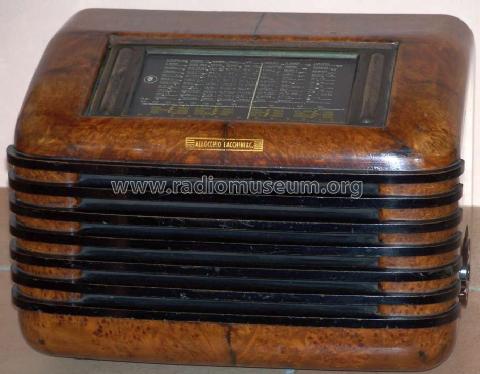

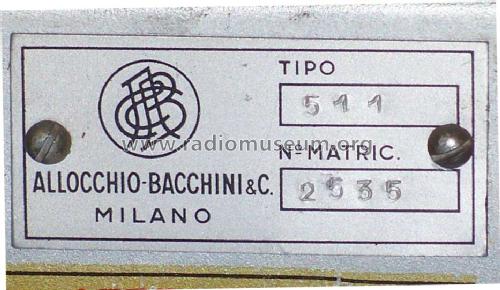

• Model: 511 - Allocchio Bacchini Radialba;

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 330 x 235 x 210 mm / 13 x 9.3 x 8.3 inch

• Notes

• Lo schema presente indica come convertitrice una ECH3 anzichè una ECH4.

• Net weight (2.2 lb = 1 kg)
• 7.6 kg / 16 lb 11.8 oz (16.74 lb)

• Mentioned in
• -- Schematic (Il Radio Libro D.E. Ravalico V edizione Hoepli editore 1954.)

• Author
• Model page created by Roberto Gabba. See "Data change" for further contributors.
