- Country
- Italy
- Manufacturer / Brand
- Allocchio Bacchini (Radialba); Milano
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 105921
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 425 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 160; 220 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: 751 - Allocchio Bacchini Radialba;
- Notes
-
Indicatore ottico di sintonia. Controllo di tono. Ingresso per giradischi.
- Literature/Schematics (1)

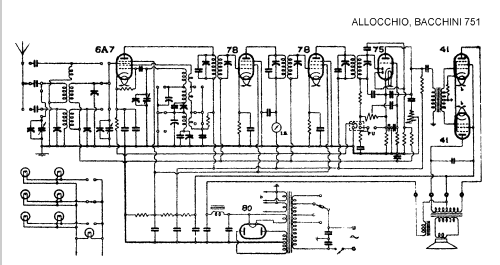

- -- Schematic
- Literature/Schematics (2)
- Schemario di apparecchi radio a valvole (D. E. Ravalico - Hoepli - 1944)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
