• Country
• Germany

• Manufacturer / Brand
• Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim

• Year
• 1956–1960

• Category
• Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter

• Radiomuseum.org ID
• 20924

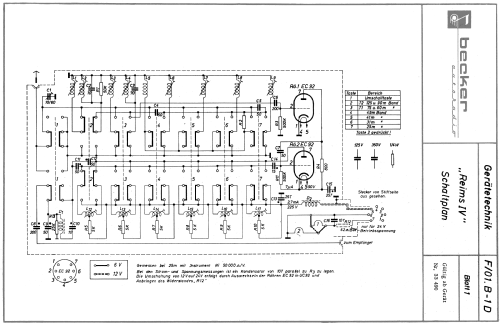

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• EC92 EC92

• Main principle
• RF Converter/Adapter (not voltage converter)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Reims [EC92] - Becker, Max Egon,

• Dimensions (WHD)
• 140 x 48 x 85 mm / 5.5 x 1.9 x 3.3 inch

• Notes
• Vorsatzgerät für 6 KW-Bänder; für jeden Autoempfänger mit MW-Bereich geeignet.
  Vier unterschiedliche Versionen:
  Reims I: 16, 19, 25, 31, 41, 49 m;
  Reims II: 16, 19, 25, 41 m, T1 (60 + 75 m), T2 (90 + 125 m);
  Reims III: 19, 25, 31, 49 m, T1 (60 + 75 m), T2 (90 + 125 m);
  Reims IV: 25, 31, 41, 49 m, T1 (60 + 75 m), T2 (90 + 125 m).

• Net weight (2.2 lb = 1 kg)
• 0.7 kg / 1 lb 8.7 oz (1.542 lb)

• Price in first year of sale
• 90.00 DM

• External source of data
• Erb

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• HdB d.Rdf-& Ferns-GrH 1956/57 (bis 1959/60)
