• Country
• Great Britain (UK)

• Manufacturer / Brand
• Beethoven (Brand), Montague Radio Inventions, Beethoven Radio, Beethoven Electric Equipment; London, Manchester

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 79231

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• CCH35 EF39 CBL31 CY31

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 200-250 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet.

• Material
• Wooden case

• from Radiomuseum.org

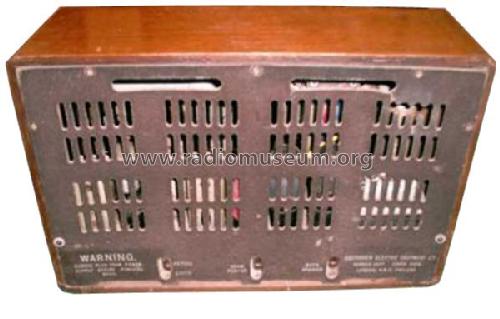

• Model: U3038 - Beethoven Brand, Montague

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 18 x 12 x 7 inch / 457 x 305 x 178 mm

• Source of data
• Radio! Radio!

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
