• Country
• Belgium

• Manufacturer / Brand
• Bell Telephone Mfg. Co. (Radiobell); Antwerp

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 203313

• • Brand: Radiobell

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• EF8 EK2 EF9 EBC3 6G5 or 6H5 EL6 EZ4

• Main principle
• Superhet with RF-stage; ZF/IF 445 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 120; 135; 150; 225; 250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Power out
• 8 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

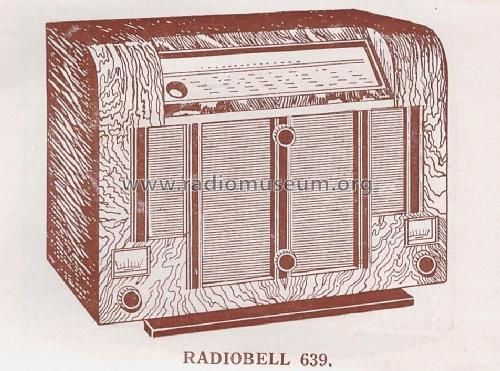

• Model: Radiobell 639 - Bell Telephone Mfg. Co.

• Notes
• Possibly comes with magic eye (Manuel de la Radio does not always list magic eyes).

• Price in first year of sale
• 3,690.00 BFR

• Source of data
• Manuel de la Radio 1940, van Cortenberghe

• Literature/Schematics (1)
• Radio Schema's, Deel II (1943 deel II)
