• Country
• Germany

• Manufacturer / Brand
• Blackfield; Gladbeck

• Year
• 1970 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 128893

• Number of Tubes
• 11

• Valves / Tubes
• ECC82 ECC83 ECC83 ECC83 ECC83 ECC83 ECL82 EL503 EL503 EL503 EL503

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 100 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

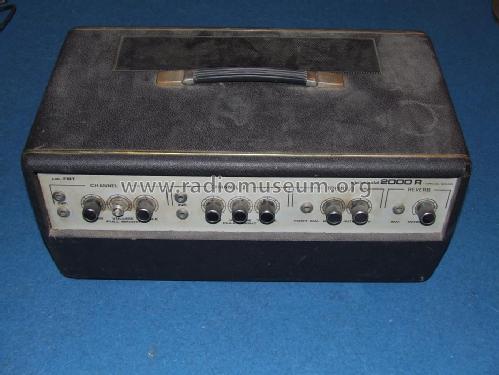

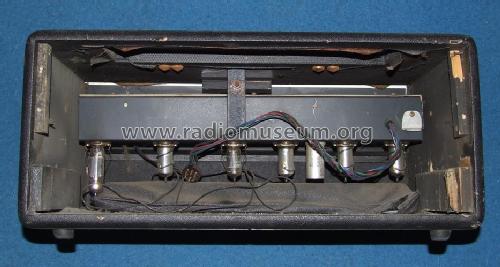

• Model: Special Sound 2000 R - Blackfield; Gladbeck

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 540 x 250 x 300 mm / 21.3 x 9.8 x 11.8 inch

• Notes
• Musikverstärker mit 2 Kanälen. Jeweils Regler für Lautstäke, Bass und Höhen. Eingebautes Tremolo und Federhall. Ausgangsimpedanz 8 und 16 Ohm.

• Net weight (2.2 lb = 1 kg)
• 20 kg / 44 lb 0.8 oz (44.053 lb)

• Author
• Model page created by Sebastian Göbel. See "Data change" for further contributors.

• Other Models

• Here you find 2 models, 2 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
