New Yorker 7.638.750 ab Z 1680001
Blaupunkt (Ideal), Berlin, später Hildesheim
- Country
- Germany
- Manufacturer / Brand
- Blaupunkt (Ideal), Berlin, später Hildesheim
- Year
- 1968
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 122347
-
- alternative name: Ideal-Radiotelephon- und App-fabr. || Ideal-Werke AG; Berlin (ab 1934)
- Brand: Rotstern

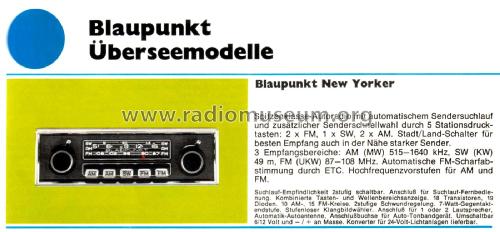

Q: Blaupunkt, Produkt_katalog '69

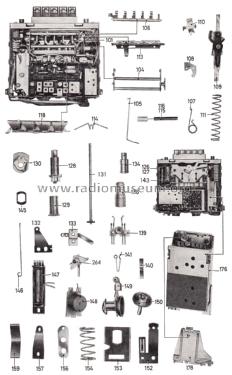

Q: Blaupunkt, Service-Manual

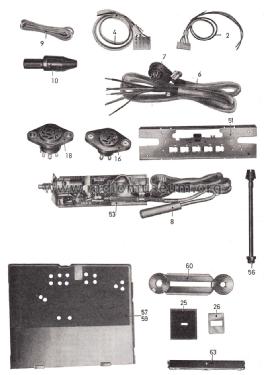

Q: Blaupunkt, Service-Manual
Q: Blaupunkt, Service-Manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 18
- Semiconductors
- AF106 AF201 AF126 AF126 AF126 AF121 AF121 AF126 AC126 AC126 AD148 BFY40 AD148 AC126 AC126 AC128 AD149 AD149 AA112 AA119 SIS20 AA113 BA121 Z1,5 Z4B4,3
- Main principle
- Superheterodyne (common); ZF/IF 460 or 452/10700 kHz
- Tuned circuits
- 10 AM circuit(s) 15 FM circuit(s)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 7 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: New Yorker 7.638.750 ab Z 1680001 - Blaupunkt Ideal, Berlin,
- Shape
- Chassis only or for «building in»
- Notes
-
Exportgerät mit Sendersuchlauf.
