• Country
• United States of America (USA)

• Manufacturer / Brand
• Brook Electronics Inc.; Elizabeth, N.J.

• Year
• 1953 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 158841

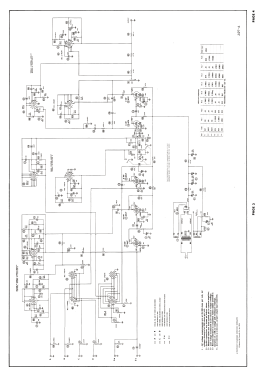

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6J7 6SJ7 6SJ7 6C4 6C4 6X4

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org
• Model: High Quality Audio Amplifier Model 7 - Brook Electronics Inc.;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 14.5 x 3.5 x 10.5 inch / 368 x 89 x 267 mm

• Notes
• PreAmp, mono, with several phono equalization settings.

• Net weight (2.2 lb = 1 kg)
• 10 lb (10 lb 0 oz) / 4.540 kg

• Source of data
• -- Original prospect or advert

• Mentioned in

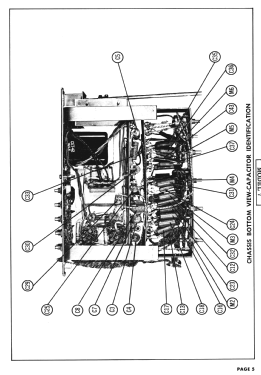

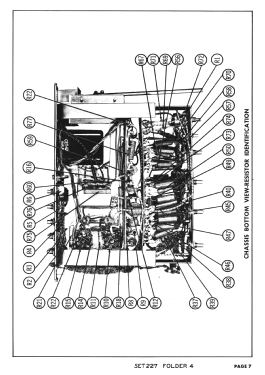

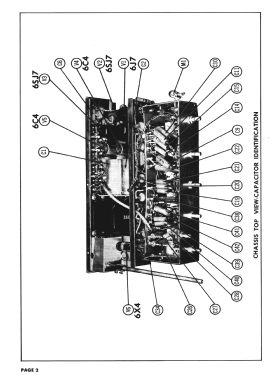

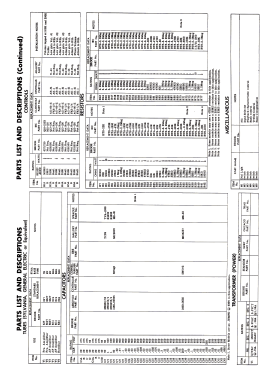

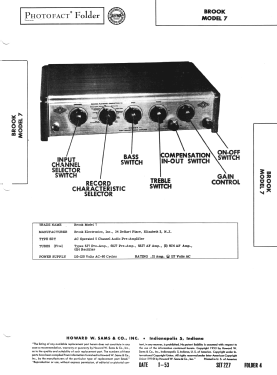

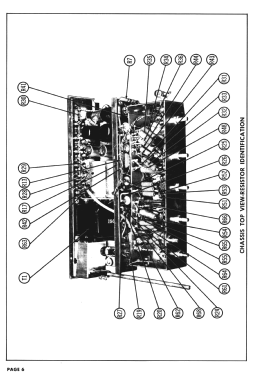

• Photofact Folder, Howard W. SAMS

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
