Conn Strobotuner ST-12 Type 001

Conn, C.G. Instruments Ltd (Conn-Selmer); Elkhart, IN

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Conn, C.G. Instruments Ltd (Conn-Selmer); Elkhart, IN

Year
1982

perfect model

Category
Miscellaneous (Other, Various) - see notes

Radiomuseum.org ID
259646

Schematics

Conn Strobotuner ST-12; Conn, C.G. (ID = 1720770) Misc — Conn, C.G. Conn Strobotuner ST-12 (1)

Conn Strobotuner ST-12; Conn, C.G. (ID = 1720771) Misc — Conn, C.G. Conn Strobotuner ST-12 (1)

Conn Strobotuner ST-12; Conn, C.G. (ID = 1720772) Misc — Conn, C.G. Conn Strobotuner ST-12 (1)

Conn Strobotuner ST-12; Conn, C.G. (ID = 1720773) Misc — Conn, C.G. Conn Strobotuner ST-12 (1)

Conn Strobotuner ST-12; Conn, C.G. (ID = 1720774) Misc — Conn, C.G. Conn Strobotuner ST-12 (1)

Conn Strobotuner ST-12; Conn, C.G. (ID = 1720775) Misc — Conn, C.G. Conn Strobotuner ST-12 (1)

Conn Strobotuner ST-12; Conn, C.G. (ID = 1720776) Misc — Conn, C.G. Conn Strobotuner ST-12 (1)

Conn Strobotuner ST-12; Conn, C.G. (ID = 1720777) Misc — Conn, C.G. Conn Strobotuner ST-12 (1)

Conn Strobotuner ST-12; Conn, C.G. (ID = 1720778) Misc — Conn, C.G. Conn Strobotuner ST-12 (1)

Conn Strobotuner ST-12; Conn, C.G. (ID = 1720779) Misc — Conn, C.G. Conn Strobotuner ST-12 (1)

Conn Strobotuner ST-12; Conn, C.G. (ID = 1720780) Misc — Conn, C.G. Conn Strobotuner ST-12 (1)

Conn Strobotuner ST-12; Conn, C.G. (ID = 1738568) Misc — Conn, C.G. Conn Strobotuner ST-12 (1)

Technical Specifications

Number of Transistors
11

Semiconductors

Wave bands
- without

Power type and voltage
Alternating Current supply (AC) / 240 Volt

Loudspeaker
- - No sound reproduction output.

Material
Metal case

from Radiomuseum.org
Model: Conn Strobotuner ST-12 [Type 001] - Conn, C.G. Instruments Ltd

Shape
Tablemodel, with any shape - general.

Dimensions (WHD)
170 x 274 x 143 mm / 6.7 x 10.8 x 5.6 inch

Notes

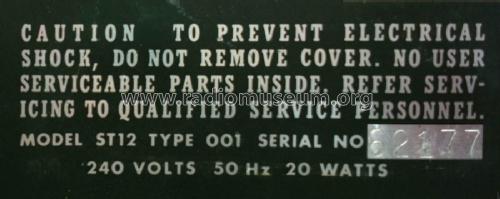

The Conn Strobotuner model ST-12 uses 9 IC-s. (Serial No. 62177). Has a microphone with a cable to take out of the cabinet. See also the very similar model ST-11.

On YouTube you find this very well done explanation about the principle of strobe tuners including the Conn Strobotuner. We have to know that for a longer time Strobotuners used radio tubes, like the Strobotuner ST-2, ST-4, Strobotuner ST-6 or St-8 from 1958.

The first Strobotuner was invented by Conn and called Ctroboconn and came on the market in 1936.

Joseph Plateau of Belgium is generally credited with the invention of the stroboscope in 1832, when he used a disc with radial slits which he turned while viewing images on a separate rotating wheel. Plateau called his device the "Phenakistoscope". There was a simultaneous and independent invention of the device by the Austrian Simon von Stampfer, which he named the "Stroboscope"

Author
Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
