• Country
• Germany

• Manufacturer / Brand
• Emud, Ernst Mästling; Ulm

• Year
• 1950–1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 1586

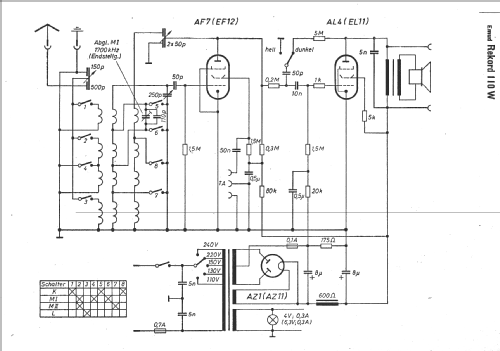

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• EF12 EL11 AZ11

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch

• Material
• Bakelite case

• from Radiomuseum.org

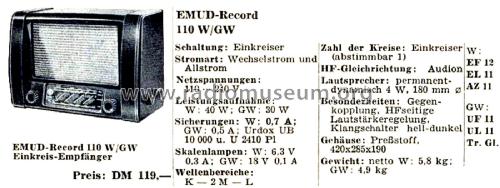

• Model: Record 110-W [E-Röhren] - Emud, Ernst Mästling; Ulm

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 420 x 285 x 190 mm / 16.5 x 11.2 x 7.5 inch

• Notes
• Wellenbereich: LW, 2× MW, KW.
  Siehe auch Variante mit A-Röhren.

• Net weight (2.2 lb = 1 kg)
• 6.2 kg / 13 lb 10.5 oz (13.656 lb)

• Price in first year of sale
• 110.00 DM

• Source of data
• Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 1, Ernst Erb

• Mentioned in
• Funkschau (5017)

• Literature/Schematics (1)
• Lange, Schaltungen der Funkindustrie (Band 3, S. 326)

• Other Models

• Here you find 422 models, 328 with images and 231 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Emud, Ernst Mästling; Ulm
