Radiofix Mark V

Euromarine; (where?)

Data
Forum
Pictures
Collections

  • Year
  • 1980 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 200057

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Long Wave and/or Very Low Frequency (VLF).
  • Power type and voltage

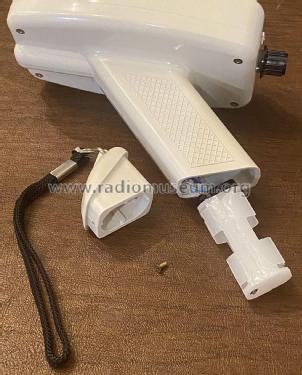

  • Dry Batteries
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Radiofix Mark V - Euromarine; where?
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 170 x 137 x 63 mm / 6.7 x 5.4 x 2.5 inch
  • Notes

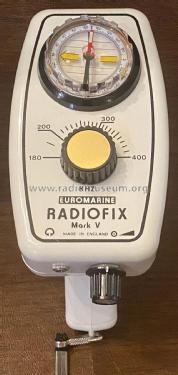

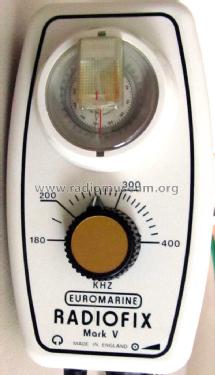

  • This Radiofix receiver has a frequency range of 180kHz to 400 kHz for AM signals. In combination with the fluid compass it is possible to tune known long-wave AM beacon-signals and calculate a geographic position by nulling the signals via rotation of the ferrite-antenna.

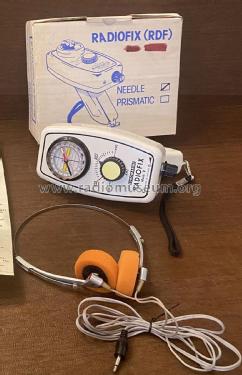

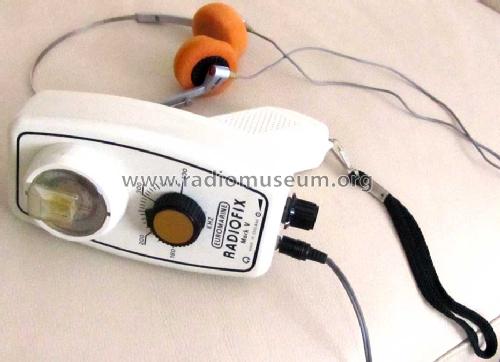

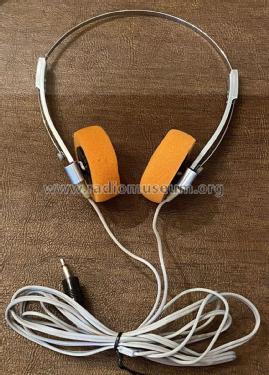

    It can also receive a number of the LW broadcast stations such as BBC at 198 kHZ. See also older versions - maybe there are also newer versions. The weight of the earphones is 57 grams.
  • Net weight (2.2 lb = 1 kg)
  • 0.392 kg / 0 lb 13.8 oz (0.863 lb)
  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
