• Country
• United States of America (USA)

• Manufacturer / Brand
• Federal Radio Corp. / Federal Telephone & Telegraph Co.; Buffalo, NY

• Year
• 1947 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 40315

• • alternative name: Federal Recorder || Federal Tel. & Radio || Federal T&T
  • Brand: Orthosonic / Ortho-Sonic

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AT6 50L6GT 35W4 FBE-5324

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 105 - 125; 210 - 250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.5 cm = 4.9 inch

• Power out
• 1.5 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

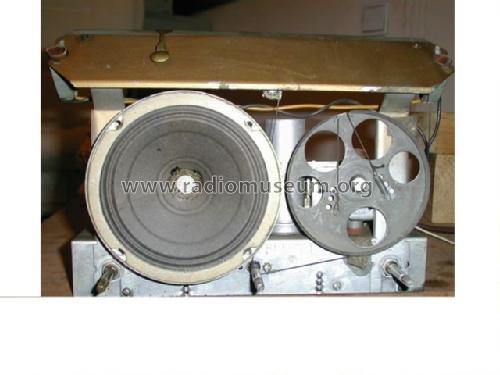

• Model: Standard Electric E1025TB - Federal Radio Corp. / Federal

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 310 x 215 x 190 mm / 12.2 x 8.5 x 7.5 inch

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 16 = ca. 1948 and before
