• Country
• United States of America (USA)

• Manufacturer / Brand
• Fisher Radio; New York (NY)

• Year
• 1981 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 209851

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 40 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: RS-3030 - Fisher Radio; New York NY

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 440 x 134 x 334 mm / 17.3 x 5.3 x 13.1 inch

• Notes
• Ausführung silber oder schwarz, blaue Anzeigenbeleuchtung, Made in Japan, NF-Hybridverstärker.

• Net weight (2.2 lb = 1 kg)
• 9.8 kg / 21 lb 9.4 oz (21.586 lb)

• Source of data

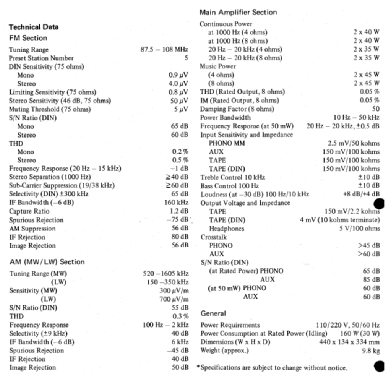

• - - Manufacturers Literature

• Author
• Model page created by Andreas van de Ven. See "Data change" for further contributors.
