Zweikanal-Oszillograf OS255

• Country
• Great Britain (UK)

• Manufacturer / Brand
• Gould Advance Ltd.; Hainault

• Year
• 1979 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 146597

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 56803A

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

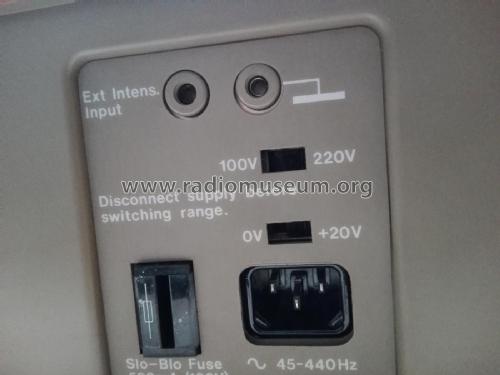

• Power type and voltage
• Alternating Current supply (AC) / 100; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Zweikanal-Oszillograf OS255 - Gould Advance Ltd.; Hainault

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 335 x 140 x 455 mm / 13.2 x 5.5 x 17.9 inch

• Notes
• Gerät arbeitet bis 15 MHz (obere Grenzfrequenz); mehrere IC's vorhanden.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Michael Mischke. See "Data change" for further contributors.
