- Country
- Germany
- Manufacturer / Brand
- Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern
- Year
- 1969–1972
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 103761
-
- alternative name: Grundig Portugal || Grundig USA / Lextronix
Original prospekt.
ebay.de ID: 220941129749, seller: claus2328
Kat.Grundig
Anschluß für Kugelstrahler
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- 4 Loudspeakers
- Power out
- 35 W (50 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: HiFi-Box 525 - Grundig Radio-Vertrieb, RVF,
- Dimensions (WHD)
- 580 x 240 x 240 mm / 22.8 x 9.4 x 9.4 inch
- Notes
-

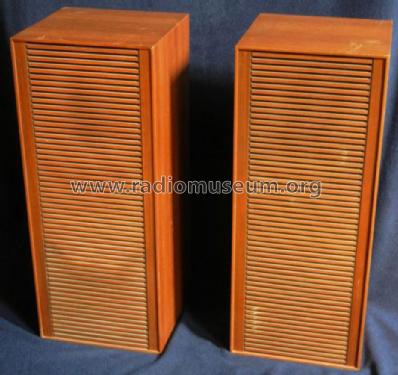

HiFi-Lautsprecher-Box 525
2-Weg-System mit 4 Lautsprechern, 2 Tieftöner 204mm - Schwingspule 37mm, 2 Kalottenhochtöner 115×75 mm - Schwingspule 25mm, Übernahmefrequenz der Weiche 3.500Hz, Frequenzgang 40-20000 Hz, Impedanz 4 Ohm, Anschluß für Grundig Kugelstrahler.
Farb-Varianten: Nußbaum natur mattiert, Teak natur, Palisander mattiert (360,- DM).
- Net weight (2.2 lb = 1 kg)
- 15 kg / 33 lb 0.6 oz (33.04 lb)
- Price in first year of sale
- 345.00 DM
- Source of data
- Handbuch VDRG 1970/1971
- Mentioned in
- -- Original prospect or advert (Grundig Katalog 1969/70 und 1970)
- Author
- Model page created by Lars Brötje. See "Data change" for further contributors.
