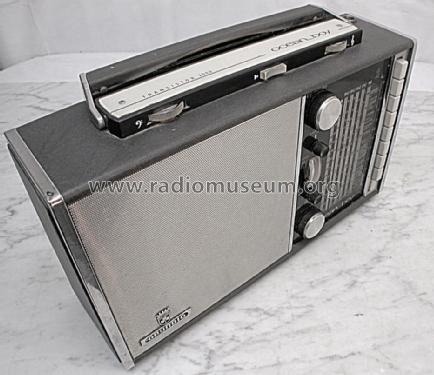

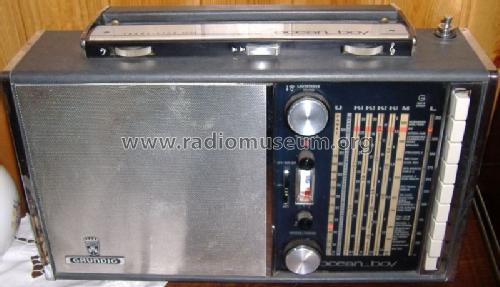

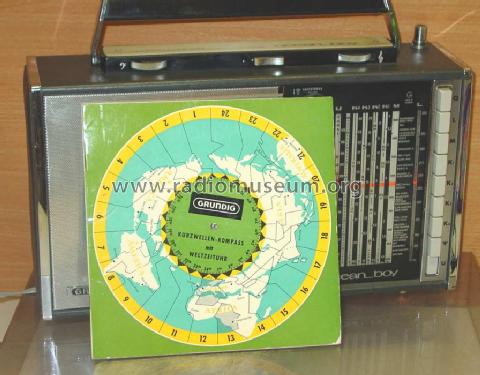

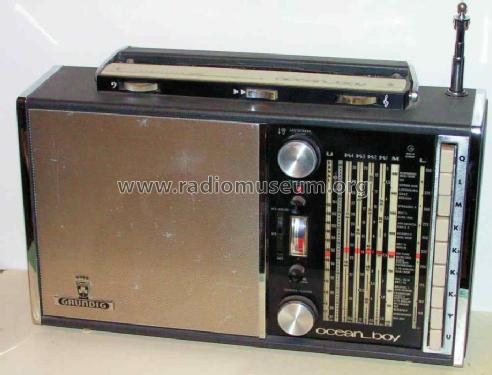

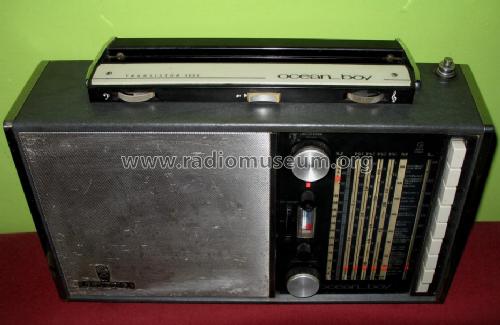

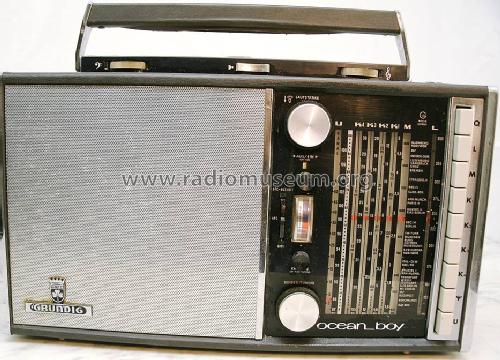

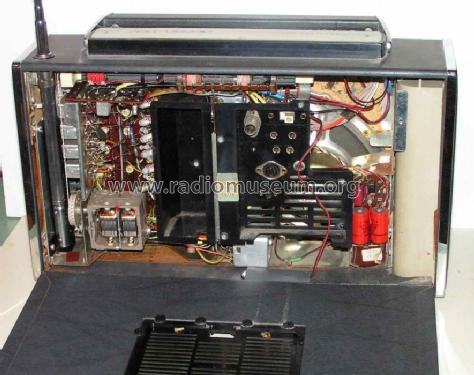

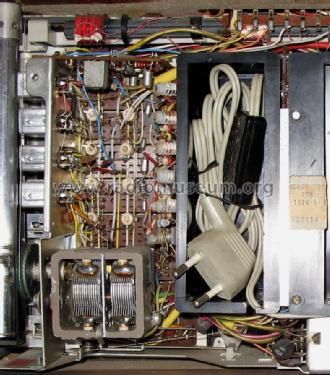

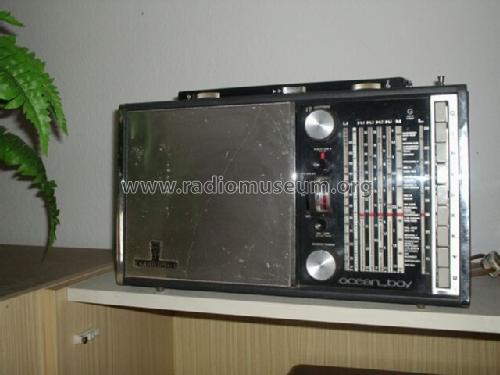

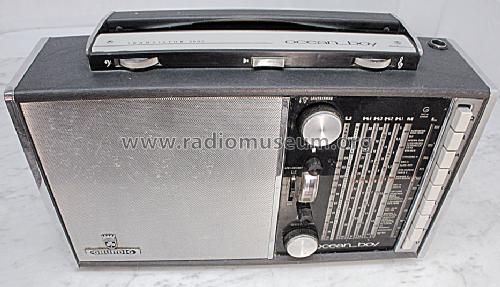

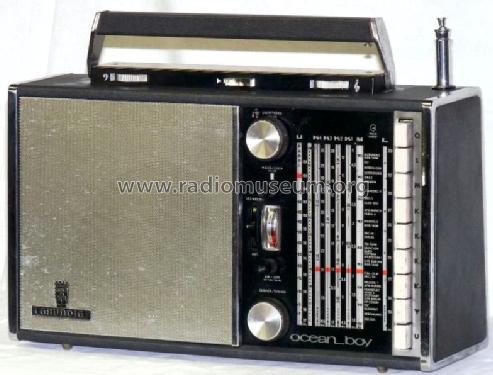

Ocean-Boy 205 Transistor 3000

Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Data

Forum

Pictures

Collections

Country
Germany

Manufacturer / Brand
Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Year
1965–1967

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
2194

- alternative name: Grundig Portugal || Grundig USA / Lextronix

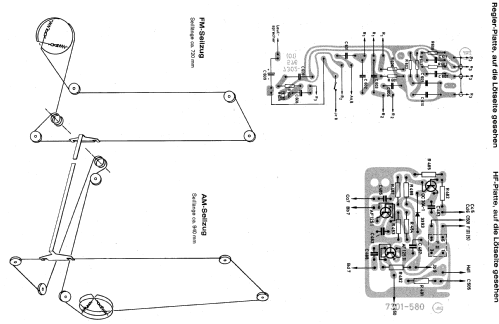

Schematics

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 81973) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (3)

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 81974) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (3)

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 81976) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (3)

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 81977) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (3)

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 81978) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (3)

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 81979) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (3)

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 724485) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (1)

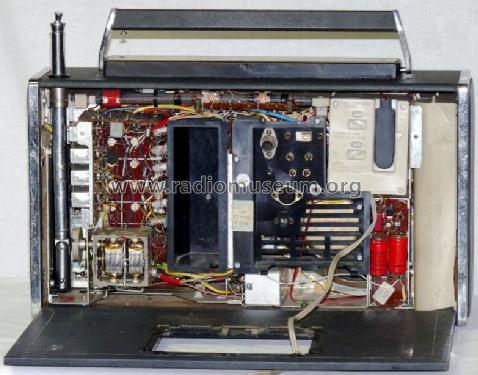

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 724481) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (1)

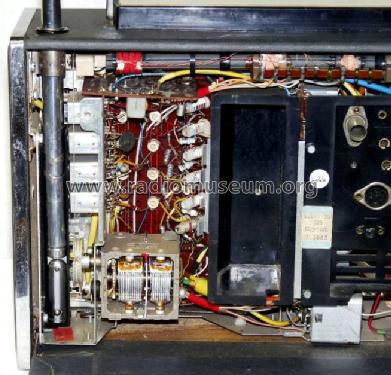

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 724482) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (1)

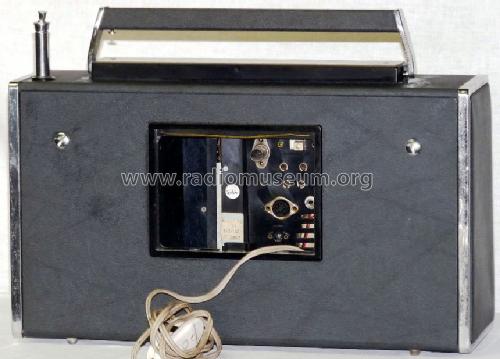

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 724483) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (1)

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 724484) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (1)

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 724100) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (2)

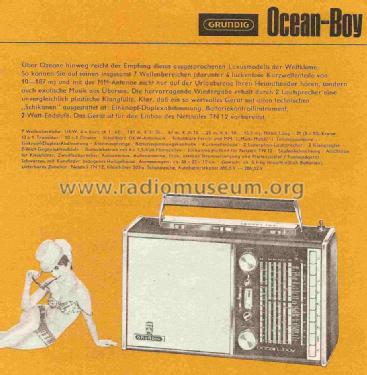

Grundig Werbung 1966

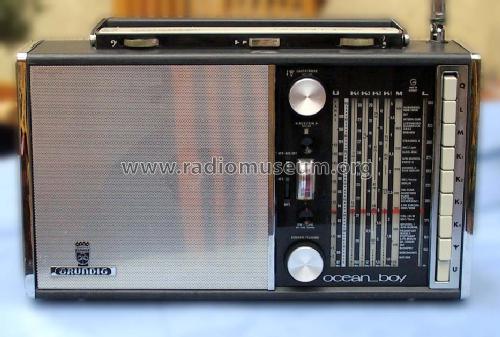

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 72447) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (1)

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 138860) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (1)

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 149157) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (1)

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 149158) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (1)

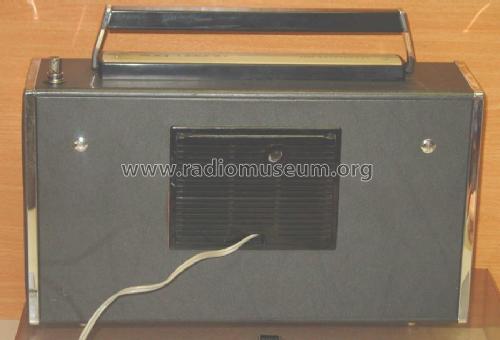

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 149159) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (1)

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 241899) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (1)

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 676307) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (1)

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 512946) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (1)

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 512948) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (1)

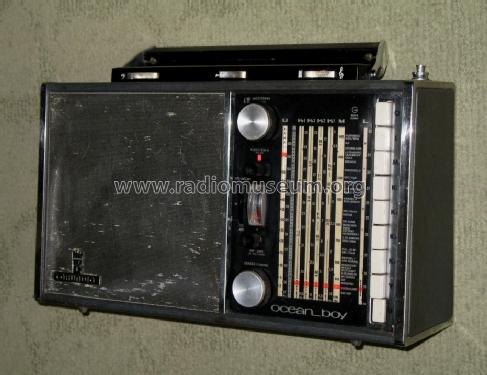

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 1292181) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (2)

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 1292182) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (2)

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 1292183) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (1)

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 1292184) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (2)

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 1292185) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (1)

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 1292186) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (2)

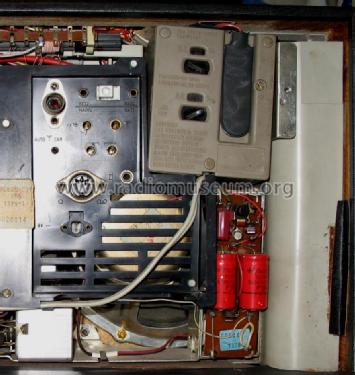

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 1292187) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (2)

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 1292189) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (1)

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 1292227) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (1)

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 1302333) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (1)

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 1378407) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (1)

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 1378408) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (1)

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 1378409) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (1)

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 634535) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (1)

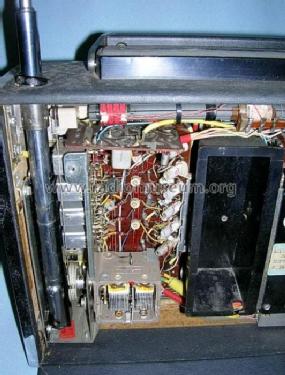

Ocean-Boy 205 Transistor 3000; Grundig Radio- (ID = 634536) Radio — Grundig Radio- Ocean-Boy 205 Transistor 3000 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
14

Semiconductors
AF106 AF106 AF125 AF125 OC304 AF126 AF126 AF126 AF126 BSY76 AC151 AC153 AC153 BA102 1N60 AA116 AA116 AA116 1,4St1 4,2St1 AD156 B30C650

Main principle
Superheterodyne (common); ZF/IF 460/10700 kHz

Tuned circuits
8 AM circuit(s) 13 FM circuit(s)

Wave bands
Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

Power type and voltage
Line plus power jack, mostly with battery or storage battery / 110; 220 / 6 or 12 / D: 6 x 1.5 Volt

Loudspeaker
2 Loudspeakers

Power out
2 W (unknown quality)

Material
Leather / canvas / plastic - over other material

from Radiomuseum.org
Model: Ocean-Boy 205 Transistor 3000 - Grundig Radio-Vertrieb, RVF,

Shape
Portable set > 8 inch (also usable without mains)

Dimensions (WHD)
380 x 220 x 115 mm / 15 x 8.7 x 4.5 inch

Notes

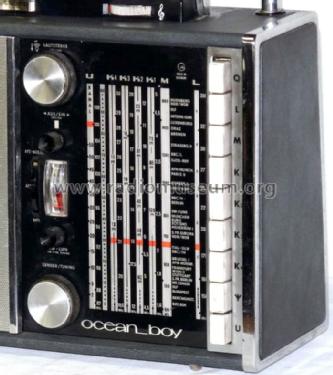

Grundig Ocean-Boy 205 hat weisse Drucktasten an der rechten Skalenseite. Die Nachfolger-Modelle Ocean-Boy 207 und Ocean-Boy 208 haben schwarze Tasten.

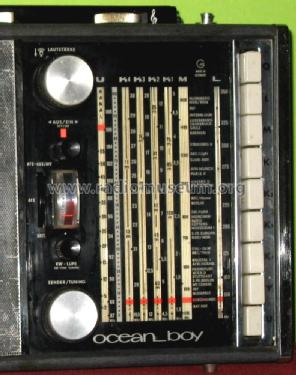

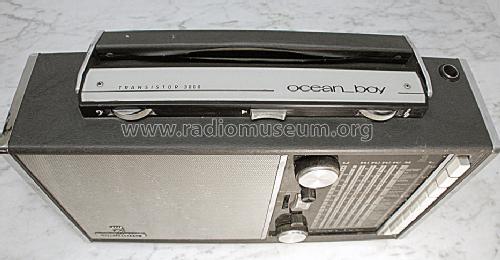

Frontbeschriftung unter der Skala Ocean Boy, oben Transistor 3000 und Ocean Boy.
Die Skala trägt Sendernamen für den MW-Bereich.

UKW-AFC; Feldstärke-Anzeige; 6 oder 12 V Autobatterie über Spezialkabel. Transformatorgekoppelte Gegentakt-Endstufe.

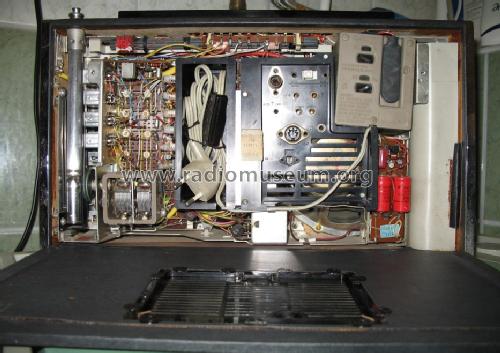

Eingesetztes Netzteil TN12, enthält den Leistungstransistor AD156

Siehe auch Exportausführung Transistor 3000 ohne Sendernamen.

Net weight (2.2 lb = 1 kg)
5.8 kg / 12 lb 12.4 oz (12.775 lb)

Source of data
Handbuch VDRG 1965/1966 / Radiokatalog Band 1, Ernst Erb

Mentioned in
Handbuch VDRG 1966/1967

Literature/Schematics (1)
-- Original-techn. papers.

Literature/Schematics (2)
Handbuch RFP 1965/66 und 1966/67, Verlag Funk-Kurier, Thiele

Other Models
Here you find 6208 models, 5434 with images and 4205 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

Collections | Museums | Literature

Collections

The model Ocean-Boy 205 is part of the collections of the following members.

Forum

Forum contributions about this model: Grundig Radio-: Ocean-Boy 205 Transistor 3000

Threads: 1 | Posts: 2

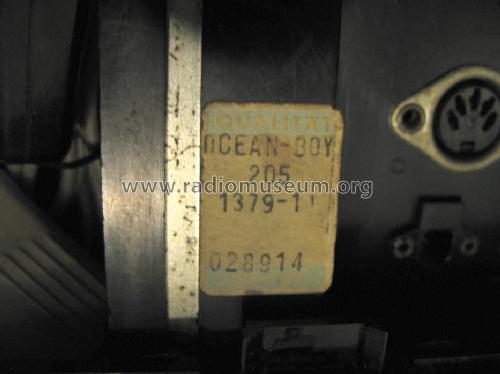

I have just aquired an Ocean Boy , but I am not sure if it is a 205 or 207. How can I tell? It says "Transistor 3000" on the top near the handle.
