• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1971–1975

• Category
• Miscellaneous (Other, Various) - see notes

• Radiomuseum.org ID
• 118358

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 1

• Semiconductors
• AC176

• Wave bands
• - without

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Dry Batteries / 1,5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

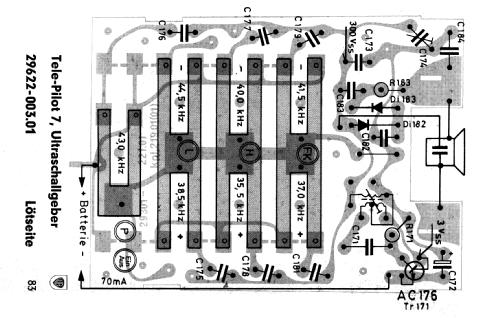

• Model: Tele-Pilot 7 29622-003.01 - Grundig Radio-Vertrieb, RVF,

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 70 x 40 x 115 mm / 2.8 x 1.6 x 4.5 inch

• Notes
• Grundig Tele-Pilot (TP) 7, 29622-003.01;
  Ultraschall-Farbfernseh-Fernbedienung für 7 Funktionen.

• Mentioned in
• - - Manufacturers Literature (Grundig Technisches Jahrbuch 1991)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by a member from A. See "Data change" for further contributors.
