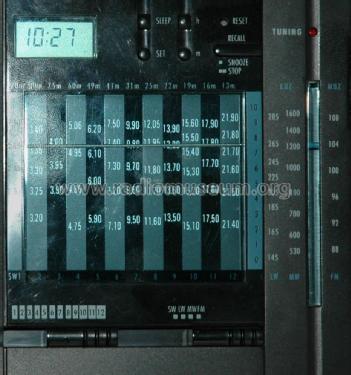

Yacht-Boy 217

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1995–1997

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 166927

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / 3 × AA 1,5 / 4,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.5 cm = 3 inch

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Yacht-Boy 217 - Grundig Radio-Vertrieb, RVF,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 177 x 110 x 42 mm / 7 x 4.3 x 1.7 inch

• Notes
• 15 Bands FM/MW/LW/SW1...12 World Receiver with Alarm Timer, 6 tlg. Teleskopantenne (70 cm), Ferritantenne 13,5 cm, Kopfhöreranschluß über 3,5 mm Klinkenbuchse, Anschluß für ext. Netzgerät DC-4,5 Volt, Stützbatterie 1,5 Volt für Clock-Betrieb erforderlich, Ledertasche als Zubehör

• Net weight (2.2 lb = 1 kg)
• 0.5 kg / 1 lb 1.6 oz (1.101 lb)

• Author
• Model page created by Museum Roggenhofer. See "Data change" for further contributors.
