Yacht-Boy 650

• Country
• Germany

• Manufacturer / Brand
• Grundig (Radio-Vertrieb, RVF, Radiowerke); Fürth/Bayern

• Year
• 1982/1983

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 135997

• • alternative name: Grundig Portugal || Grundig USA / Lextronix

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 110-127/220-230 / AA: 5 x 1,5 & AG13: 1 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Yacht-Boy 650 - Grundig Radio-Vertrieb, RVF,

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 270 x 150 x 45 mm / 10.6 x 5.9 x 1.8 inch

• Notes

• 6 Kurzwellenbänder:
  5,9 - 6,3MHz
  7,0 - 7,4MHz
  9,4 - 10,0MHz
  11,6 - 12,3MHz
  15,0 - 15,75MHz
  17,6 - 18,4MHz.

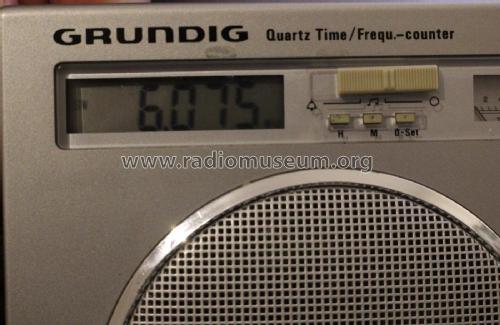

  Die Uhr (Stützbatterie 1,5V Zelle AG13) dient auch als Frequenzanzeige.

• Net weight (2.2 lb = 1 kg)
• 1.1 kg / 2 lb 6.8 oz (2.423 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
