SX-42

Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

Year
1946–1948

Category
Amateur-Receiver (amateur bands, may include broadcast bands)

Radiomuseum.org ID
18702

Schematics

SX-42 ; Hallicrafters, The; (ID = 18397) Amateur-R — Hallicrafters, The; SX-42 (3)

SX-42 ; Hallicrafters, The; (ID = 18398) Amateur-R — Hallicrafters, The; SX-42 (3)

SX-42 ; Hallicrafters, The; (ID = 386203) Amateur-R — Hallicrafters, The; SX-42 (3)

SX-42 ; Hallicrafters, The; (ID = 386204) Amateur-R — Hallicrafters, The; SX-42 (3)

SX-42 ; Hallicrafters, The; (ID = 386205) Amateur-R — Hallicrafters, The; SX-42 (3)

SX-42 ; Hallicrafters, The; (ID = 386206) Amateur-R — Hallicrafters, The; SX-42 (3)

SX-42 ; Hallicrafters, The; (ID = 386207) Amateur-R — Hallicrafters, The; SX-42 (3)

SX-42 ; Hallicrafters, The; (ID = 386208) Amateur-R — Hallicrafters, The; SX-42 (3)

SX-42 ; Hallicrafters, The; (ID = 386209) Amateur-R — Hallicrafters, The; SX-42 (3)

SX-42 ; Hallicrafters, The; (ID = 386210) Amateur-R — Hallicrafters, The; SX-42 (3)

SX-42 ; Hallicrafters, The; (ID = 386211) Amateur-R — Hallicrafters, The; SX-42 (3)

SX-42 ; Hallicrafters, The; (ID = 386212) Amateur-R — Hallicrafters, The; SX-42 (3)

SX-42 ; Hallicrafters, The; (ID = 386213) Amateur-R — Hallicrafters, The; SX-42 (3)

SX-42 ; Hallicrafters, The; (ID = 386214) Amateur-R — Hallicrafters, The; SX-42 (3)

SX-42 ; Hallicrafters, The; (ID = 386215) Amateur-R — Hallicrafters, The; SX-42 (3)

SX-42 ; Hallicrafters, The; (ID = 386216) Amateur-R — Hallicrafters, The; SX-42 (3)

SX-42 ; Hallicrafters, The; (ID = 1389324) Amateur-R — Hallicrafters, The; SX-42 (3)

SX-42 ; Hallicrafters, The; (ID = 1389325) Amateur-R — Hallicrafters, The; SX-42 (3)

SX-42 ; Hallicrafters, The; (ID = 1389326) Amateur-R — Hallicrafters, The; SX-42 (3)

SX-42 ; Hallicrafters, The; (ID = 1389327) Amateur-R — Hallicrafters, The; SX-42 (3)

SX-42 ; Hallicrafters, The; (ID = 1389328) Amateur-R — Hallicrafters, The; SX-42 (3)

SX-42 ; Hallicrafters, The; (ID = 1389329) Amateur-R — Hallicrafters, The; SX-42 (3)

SX-42 ; Hallicrafters, The; (ID = 1389330) Amateur-R — Hallicrafters, The; SX-42 (3)

SX-42 ; Hallicrafters, The; (ID = 1389331) Amateur-R — Hallicrafters, The; SX-42 (3)

SX-42 ; Hallicrafters, The; (ID = 1389332) Amateur-R — Hallicrafters, The; SX-42 (3)

SX-42 ; Hallicrafters, The; (ID = 1389333) Amateur-R — Hallicrafters, The; SX-42 (3)

SX-42 ; Hallicrafters, The; (ID = 1389334) Amateur-R — Hallicrafters, The; SX-42 (3)

SX-42 ; Hallicrafters, The; (ID = 1389335) Amateur-R — Hallicrafters, The; SX-42 (3)

SX-42 ; Hallicrafters, The; (ID = 2581035) Amateur-R — Hallicrafters, The; SX-42 (3)

SX-42 ; Hallicrafters, The; (ID = 2457578) Amateur-R — Hallicrafters, The; SX-42 (2)
Picture from John Haan.

SX-42 ; Hallicrafters, The; (ID = 72879) Amateur-R — Hallicrafters, The; SX-42 (1)

SX-42 ; Hallicrafters, The; (ID = 46987) Amateur-R — Hallicrafters, The; SX-42 (2)
erst an Volker R., dann an G.Bogner

SX-42 ; Hallicrafters, The; (ID = 1189192) Amateur-R — Hallicrafters, The; SX-42 (2)
Ebay Auction

SX-42 ; Hallicrafters, The; (ID = 1189193) Amateur-R — Hallicrafters, The; SX-42 (2)
Ebay Auction

SX-42 ; Hallicrafters, The; (ID = 1189194) Amateur-R — Hallicrafters, The; SX-42 (2)
Ebay Auction

SX-42 ; Hallicrafters, The; (ID = 1189195) Amateur-R — Hallicrafters, The; SX-42 (2)
Ebay Auction

SX-42 ; Hallicrafters, The; (ID = 1667664) Amateur-R — Hallicrafters, The; SX-42 (1)

SX-42 ; Hallicrafters, The; (ID = 1786907) Amateur-R — Hallicrafters, The; SX-42 (2)

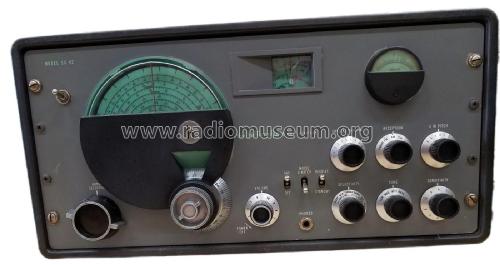

SX-42 ; Hallicrafters, The; (ID = 2581132) Amateur-R — Hallicrafters, The; SX-42 (2)

SX-42 ; Hallicrafters, The; (ID = 2581133) Amateur-R — Hallicrafters, The; SX-42 (2)
Picture from Richard Pecoroni.

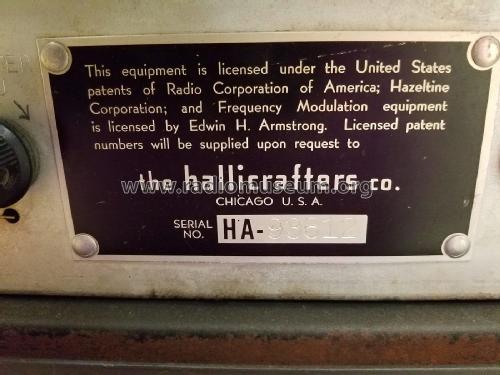

SX-42 ; Hallicrafters, The; (ID = 2581134) Amateur-R — Hallicrafters, The; SX-42 (2)
Picture from Richard Pecoroni.

SX-42 ; Hallicrafters, The; (ID = 1189590) Amateur-R — Hallicrafters, The; SX-42 (2)

SX-42 ; Hallicrafters, The; (ID = 1471366) Amateur-R — Hallicrafters, The; SX-42 (2)
By Courtesy Of EBAY User: spookysimon

SX-42 ; Hallicrafters, The; (ID = 1389323) Amateur-R — Hallicrafters, The; SX-42 (2)

SX-42 ; Hallicrafters, The; (ID = 2581135) Amateur-R — Hallicrafters, The; SX-42 (2)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
15

Valves / Tubes
6AG5 6AG5 7F8 6SK7 6SG7 6H6 7H7 7H7 6H6 6SL7 7A4 6V6 6V6 VR150 5U4

Main principle
Superhet with RF-stage; ZF/IF 455 kHz

Wave bands
Broadcast, more than 2 SW bands plus FM or UHF.

Power type and voltage
Line / Storage batteries (perhaps also batteries) / 105-125 Volt

Loudspeaker
- This model requires external speaker(s).

Power out
8 W (unknown quality)

Material
Metal case

from Radiomuseum.org
Model: SX-42 - Hallicrafters, The; Chicago,

Shape
Boatanchor (heavy military or commercial set >20 kg).

Dimensions (WHD)
20 x 10.2 x 16 inch / 508 x 259 x 406 mm

Notes
- Coverage in MHz:
  - 0.540-1.62
  - 1.62-5, 5-15
  - 15-30
  - 27-55
  - 55-110
- Xtal-IF-Filter
- DC Operation also by a 6 Volts Storage Battery and "B" Batteries or Vibrapack
Price $250-$275, IF's 455 &10.700 kHz for FM, Pull-push LF stage 8 Watts; 27-110 MHz FM. Source -> Konrad Birkner.

During production, the circuit was revised several times by the manufacturer and changed accordingly. Therefore, individual copies can differ from each other. Several circuit diagram revisions have been published by the manufacturer. In many devices, the manufacturer's circuit changes were subsequently carried out more or less completely.

Net weight (2.2 lb = 1 kg)
23.6 kg / 51 lb 15.7 oz (51.982 lb)

Price in first year of sale
275.00 $

External source of data
E. Erb 3-907007-36-0

Source of data
Communications Receivers

Circuit diagram reference
Die «Thali Schemasammlung» führt das Modell.

Mentioned in
Shortwave Receivers - Past & Present (3rd ed.)

Literature/Schematics (1)
Rider's Perpetual, Volume 17 = covering 1947

Literature/Schematics (2)
Radio Retailing (Radio & Television R.) (March 1947 page 74.)

Literature/Schematics (3)
Photofact Folder, Howard W. SAMS (Set 44 Folder 6 dated 08-48)

Literature/Schematics (4)
Funk Technik Nr.13 - 1948 S. 310+311

Other Models
Here you find 926 models, 476 with images and 526 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Hallicrafters, The; Chicago, IL and Arlington/Grand Prairie, TX

Collections | Museums | Literature

Collections

The model SX-42 is part of the collections of the following members.

Forum

Forum contributions about this model: Hallicrafters, The;: SX-42

Threads: 1 | Posts: 1

I am restoring a 1947 Hallicrafters SX 42. I had been searching for the power transformer winding resistances with no results. The receiver is functional and the transformer is working fine. I am posting what I measured for resistances from this known working unit. All tubes and lamps were removed for these measurements.

Primary (120v): 3 Ω

5 volt secondary: 0.1 Ω

6.3 volt secondary: 0.2 ohms

High voltage to Center Tap #1 54 Ω

High Voltage to Center Tap #2: 58 Ω

Wayne Rosberg, 18.Dec.12
