Oszilloskop HM305

• Country
• Germany

• Manufacturer / Brand
• HAMEG GmbH, Frankfurt

• Year
• 1996 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 104842

• Picture
• Schematics

Previous Next

Previous Next

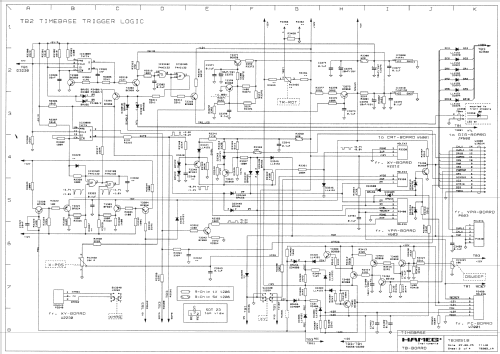

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• D14-364GY

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 100-240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Oszilloskop HM305 - HAMEG GmbH, Frankfurt

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 285 x 125 x 380 mm / 11.2 x 4.9 x 15 inch

• Notes

• Analog: 2 Kanäle 0-30 MHz, 1 mV/cm; Komponent-Tester; Zeitbasis 0,5 s-10 µs/cm, Triggerung 0-100 MHz.
  Digital: Maximale Abtastrate 2× 40 MHz/s; Speicher 2× 2048× 8 bit; Zeitbasis 50 s-0,5 µs/cm; Pre-Trigger; Dot-Jointer.

  Dieses Modell wurde 1998 ersetzt durch Nachfolger HM407

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.
