Halton 92-1
Harold Lifton Co. (Halton), USA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Harold Lifton Co. (Halton), USA
- Year
- 1945 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 244391
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- AC/DC-set / Either AC: 40 to 60 cycles, 105 to 125V or DC: 105 to 125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

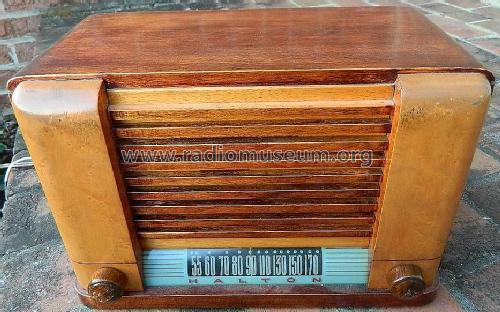

- Model: Halton 92-1 - Harold Lifton Co. Halton, USA
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 13 x 8.5 x 7 inch / 330 x 216 x 178 mm
- Notes
-
The Halton 92-1 is an AC/DC operated 5 tube BC band receiver. The BC band frequency range is 540 to 1700kHz.
Reported to have a GE chassis.
- Author
- Model page created by David Carroll. See "Data change" for further contributors.
