• Country
• Austria

• Manufacturer / Brand
• Horny (Hornyphon); Wien

• Year
• 1960

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 84788

• • Brand: Hornyphon

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 28

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM84 EL84 EZ80 PCC88 PCF80 EF85 EF80 EF80 PCL84 PCF80 EF80 PL84 PCL82 PCC85 PCF80 ECH83 PF86 PCL82 ECC82 PCF80 PL36 PY81 DY87 AW53-88

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Rubens WK2135A /00 Ch= S5 - Horny Hornyphon; Wien

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

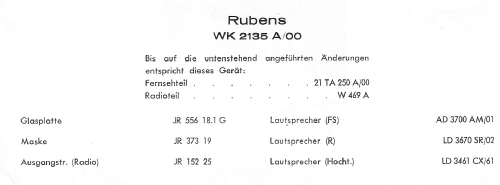

• Kombination von:
  Fernsehgerät Horny WT2115A/00, Fernsehband VHF (I+III); UHF vorbereitet.)
  und

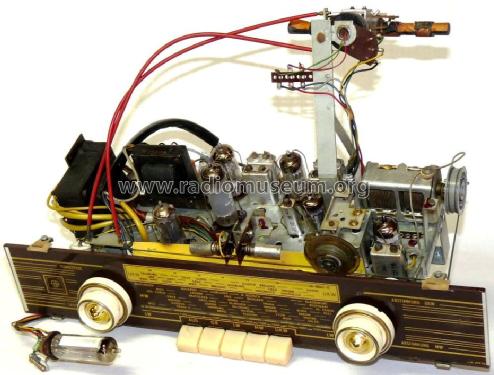

  Radiochassis Hornyphon W469A.


• Price in first year of sale
• 8,950.00 öS

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
