Kadette

• Country
• United States of America (USA)

• Manufacturer / Brand
• International Radio Corp (Kadette); Ann Arbor, MI.

• Year
• 1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 45105

• • alternative name: International All Wave || International Industries || International Kadette || IRC

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 39 36 38 KR1

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• AC/DC-set / 110 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) generic. / Ø 15 cm = 5.9 inch

• Material
• Bakelite case

• from Radiomuseum.org
• Model: Kadette - International Radio Corp

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 210 x 160 x 100 mm / 8.3 x 6.3 x 3.9 inch

• Notes

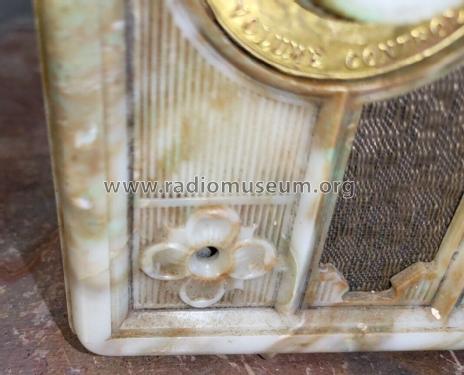

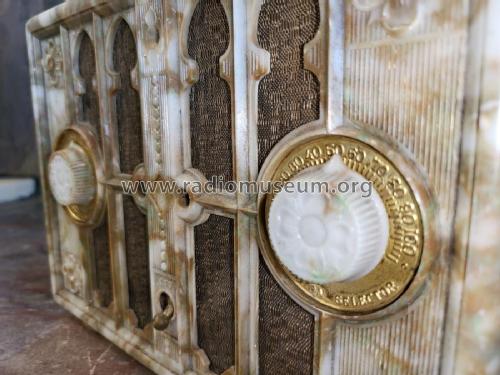

• Colors: brown bakelite, ivory plaskon, beetle

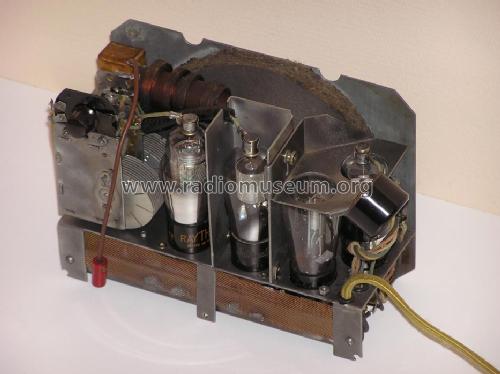

  The switch on the rear of the chassis is a bandswitch that selects between the BC and LW bands, although the schematic does not show such a switch, nor does the schematic show the connector on the rear of the chassis which may have been used to allow operation from an automobile.

• Price in first year of sale
• 25.00 $

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

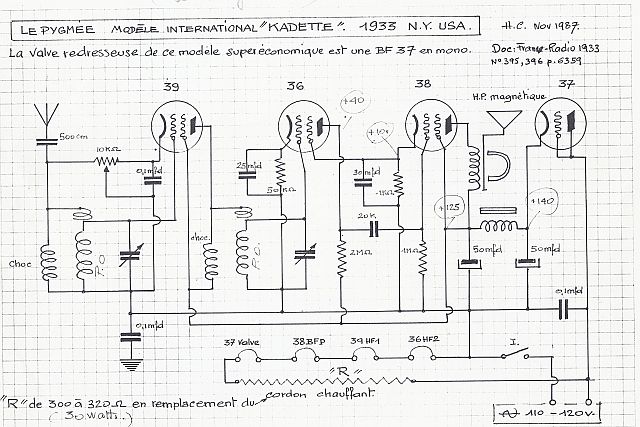

• Circuit diagram reference
• Rider's Perpetual, Volume 3 = 1933 and before

• Mentioned in
• Table Top Radios Vol. 1 Stein 98 (Plastic Radios; Stein, 2006)

• Literature/Schematics (1)
• Radio Collector`s Guide 1921-1932

• Literature/Schematics (3)
• Le Guide du Collectionneur TSF Biraud/Foster, Vol. I (page 206)
