HiFi-Music-Center HMC400A
ITT-Graetz
- Country
- Germany
- Manufacturer / Brand
- ITT-Graetz
- Year
- 1981–1984
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 104653

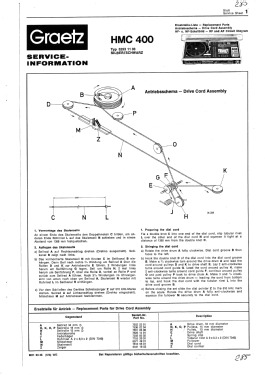

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Record Player + Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 96 W (unknown quality)
- Material
- Various materials
- from Radiomuseum.org
- Model: HiFi-Music-Center HMC400A - ITT-Graetz
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 744 x 190 x 380 mm / 29.3 x 7.5 x 15 inch
- Notes
-
Graetz HiFi-Music-Center HMC400A.
Fernbedienbare Komplettanlage: Integrierter Verstärker: 2 x 48 Watt Sinus an 4 Ohm, Klirrfaktor 0,13%, Leistungsbandbreite 14-55000Hz
3-Band Tuner, 11 Speicher für FM-Sender, ASL-Funktion (Automatic Stereo Level).
Cassetten-Tape-Deck (Closed Loop Antrieb, 3 Motore, vollelektronische Laufwerkssteuerung. Dolby NR, Übertragungsbereich 40 - 15000Hz FeCr-Tape.
Integrierter Plattenspieler DUAL 491A-RC, direktgetriebener Vollautomat mit Magnet-Tonabnehmersystem, fernbedienbar (Start, Stop, Tonarmlift), Gleichlaufschwankungen (DIN/WRMS): +/- 0,08/0,045%, Rumpel-Geräuschspannungs-Abstand >63dB.
Digitalanzeigen für Frequenz, UKW-Festsender, Lautstärke, Stereo-Balance, Bässe und Höhen. Fernbedienung und Staubschutzhaube.
Paralleltype zum ITT HiFi-Center HC 9071.
- Net weight (2.2 lb = 1 kg)
- 20.3 kg / 44 lb 11.4 oz (44.714 lb)
- Mentioned in
- -- Original prospect or advert
- Author
- Model page created by Jens Dehne. See "Data change" for further contributors.
