• Country
• Germany

• Manufacturer / Brand
• ITT Schaub-Lorenz

• Year
• 1971/1972

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 28510

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 19

• Semiconductors

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

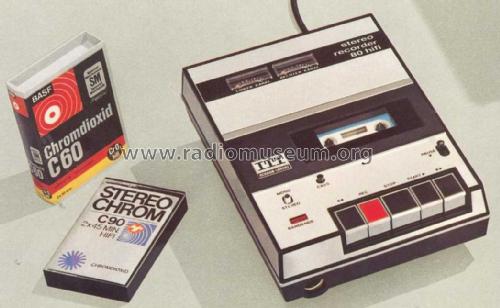

• Model: Stereo-Recorder 80 HiFi 53320107 - ITT Schaub-Lorenz

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 170 x 66 x 236 mm / 6.7 x 2.6 x 9.3 inch

• Notes
• 533201-07 = metallic/schwarz.
  19 Transistoren, 15 Dioden.

• Net weight (2.2 lb = 1 kg)
• 1.8 kg / 3 lb 15.4 oz (3.965 lb)

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1971/1972 / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.
