• Country
• Japan

• Manufacturer / Brand
• Kenwood, Trio-Kenwood Inc.; Komagane

• Year
• 1984

• Category
• Amateur TRX: Transmitter/Receiver (and Transceiver)

• Radiomuseum.org ID
• 151665

• • alternative name: Trio Corp.
  • Brand: Jennen

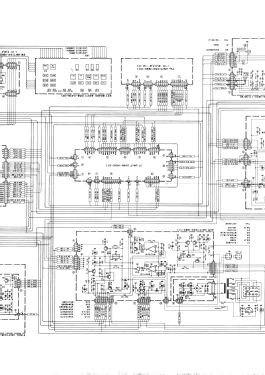

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet, double/triple conversion

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line / Batteries (any type) / 120; 220 / 13,8 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: TS-811E - Kenwood, Trio-Kenwood Inc.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 270 x 96 x 260 mm / 10.6 x 3.8 x 10.2 inch

• Notes
• Kenwood UHF-Transceiver TS-811E.
  Frequenzbereich: 430-440 MHz; Betriebsarten: FM, SSB, CW; 2 VFOs, 40 Speicher; DCS; P_out: 25 W.

• Net weight (2.2 lb = 1 kg)
• 7.1 kg / 15 lb 10.2 oz (15.639 lb)

• Mentioned in
• RICOFUNK-Katalog 1984/85

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
