Echolette M40
Echolette (Marke / brand); München
- Country
- Germany
- Manufacturer / Brand
- Echolette (Marke / brand); München
- Year
- 1959 ??
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 93945
-
- Brand: Klemt-Echolette
Hi

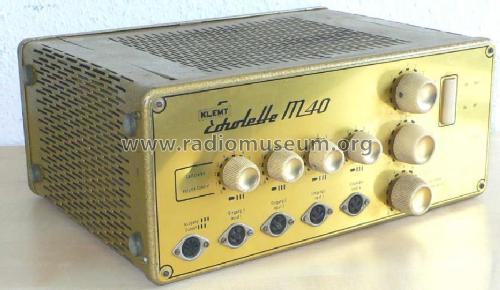

Echolette M40 mit DIN Anschlüßen
Echolette M40 mit DIN Anschlüßen
Info: Front-Knöpfe nicht "Original"
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Number of Transistors
- Semiconductors
- OA150
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 130; 150; 220; 240; 250 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 32 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Echolette M40 - Echolette Marke / brand;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 330 x 140 x 235 mm / 13 x 5.5 x 9.3 inch
- Net weight (2.2 lb = 1 kg)
- 10.5 kg / 23 lb 2 oz (23.128 lb)
- Mentioned in
- -- Original-techn. papers. (Schaltplan und Technische Daten)
