• Country
• Germany

• Manufacturer / Brand
• Echolette (Marke / brand); München

• Year
• 1963

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 96824

• • Brand: Klemt-Echolette

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC808 ECC808 ECC808 ECC82 EL34 EL34

• Number of Transistors

• Semiconductors
• BC114 BC114 DW6668 DW6668 E50C5 B380C600

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110-230 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 40 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Echolette Showstar S40 - Echolette Marke / brand;

• Shape
• Rack

• Dimensions (WHD)
• 570 x 185 x 280 mm / 22.4 x 7.3 x 11 inch

• Net weight (2.2 lb = 1 kg)
• 13 kg / 28 lb 10.1 oz (28.634 lb)

• Mentioned in

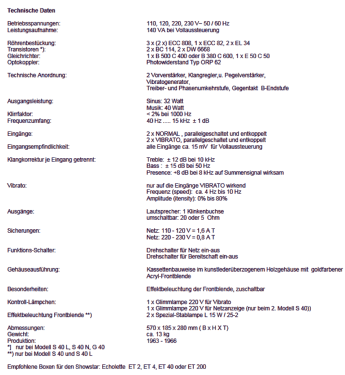

• -- Schematic (Technische Daten, Echolette HiFi-Archiv)

• Author
• Model page created by Berthold Grenz. See "Data change" for further contributors.
