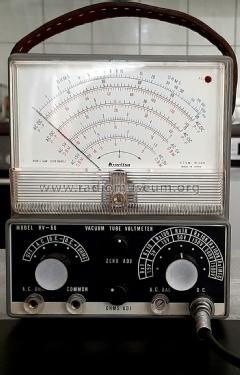

Vacuum Tube Voltmeter K-142

• Country
• Japan

• Manufacturer / Brand
• Kyoritsu Electrical Instrument Works Ltd. (KEW); Tokyo

• Year
• 1965 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 94968

• Picture
• Schematics

Previous Next

Previous Next

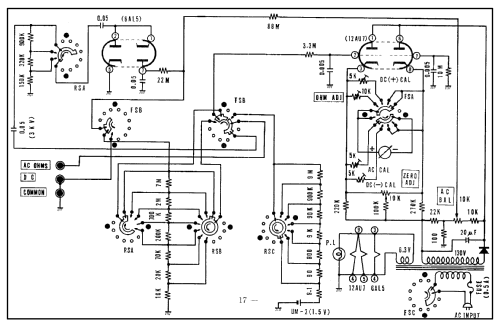

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• 12AU7 6AL5

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Material
• Metal case

• from Radiomuseum.org
• Model: Vacuum Tube Voltmeter K-142 - Kyoritsu Electrical Instrument

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 160 x 190 x 80 mm / 6.3 x 7.5 x 3.1 inch

• Notes
• 7 Meßbereiche AC/DC: 1,5 V; 5 V; 15 V; 50 V; 150 V; 500 V; 1500 V. Widerstand von 0 bis 1000 MOhm.

• Net weight (2.2 lb = 1 kg)
• 1.7 kg / 3 lb 11.9 oz (3.744 lb)

• Author
• Model page created by Otto Frosinn. See "Data change" for further contributors.
