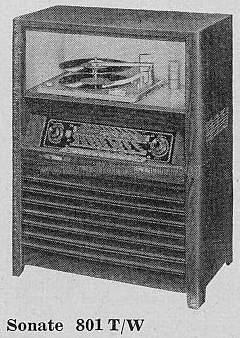

Sonate 801T/W

Loewe-(Opta); Deutschland

Data
Forum
Pictures
Collections

  • Year
  • 1955/1956
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 20227
    • alternative name: Löwe Radio

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 464/10700 kHz
  • Tuned circuits
  • 8 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 150; 220 Volt
  • Loudspeaker
  • 3 Loudspeakers
  • Power out
  • 4 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Sonate 801T/W - Loewe-Opta; Deutschland
  • Shape
  • Console with Push Buttons.
  • Dimensions (WHD)
  • 660 x 830 x 415 mm / 26 x 32.7 x 16.3 inch
  • Notes
  • Rundfunk-Chassis = Komet 782W;
    Phono-Chassis = Philips 1003 oder Perpetuum-Ebner Rex.
  • Net weight (2.2 lb = 1 kg)
  • 35.5 kg / 78 lb 3.1 oz (78.194 lb)
  • Price in first year of sale
  • 669.00 DM
  • External source of data
  • Erb
