• Country
• Germany

• Manufacturer / Brand
• Lorenz; Berlin, Zuffenhausen u.a.

• Year
• 1951/1952

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 83770

• • Brand: SEL

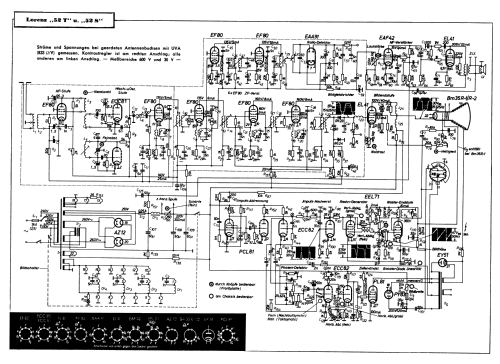

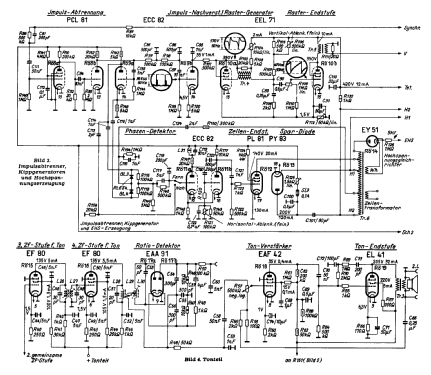

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 22

• Valves / Tubes
• EF80 ECC81 EF80 EF80 EF80 EF80 EL41 EF80 EF80 EAA91 EAF42 EL41 PCL81 ECC82 EEL71 ECC82 PL81 PY83 EY51 AZ12 AZ12 Bm35R-1 or Bm35R-2

• Conflicting model year with tube data.
• The model date contradicts tube dates. [ PY83 (1952)]

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Weltspiegel 52S - Lorenz; Berlin, Zuffenhausen u

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 660 x 1020 x 475 mm / 26 x 40.2 x 18.7 inch

• Notes
• Bänder VHF I und III. Bildröhre Bm35-R1 oder Bm35-R2.

• Net weight (2.2 lb = 1 kg)
• 55 kg / 121 lb 2.3 oz (121.145 lb)

• Mentioned in
• Funk-Technik (FT) (FT 51, FT53)

• Author
• Model page created by Folkert Rothe. See "Data change" for further contributors.
