• Country
• United States of America (USA)

• Manufacturer / Brand
• MILITARY U.S. (different makers for same model)

• Year
• 1961–1969

• Category
• Military Transceiver (TRX)

• Radiomuseum.org ID
• 141716

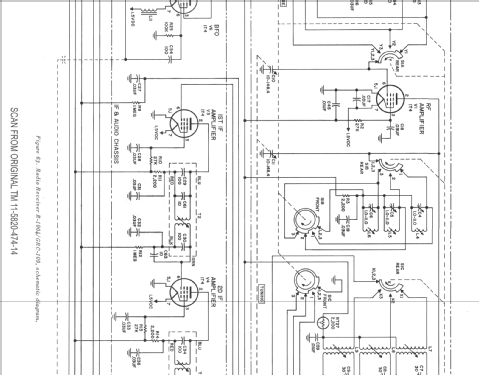

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superheterodyne (common)

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Other, details in remarks or not known.

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Radio Set AN/GRC-109 - MILITARY U.S. different makers

• Shape
• Miscellaneous shapes - described under notes.

• Notes
• AN/GRC-109:
  A so called clandestine- agent or spy radio set as well as an emergency TX/RX set, for military use and the CIA.
  The complete radio set AN/GRC-109 consists of three units:
  Radio Transmitter T-784/GRC-109, Radio Receiver R-1004/GRC-109,
  Power Supply PP-2684/GRC-109 or
  Power Supply PP-2685/GRC-109 (PP-26851/GRC-109),
  there are also several accessories like antennas, CN-690/GRC-109 voltage regulator for use with optional hand-cranked generator G-43/G, a 12 V car battery PA-109 Power Adaptor by Nems & Clarke 12 V and the GRA-71 Burst Encoder (for Morse Code Burst Transmissions) known.
  The set is technically based on the RS-1 constructed 1948/50 by the Admiral Corp. In the GRC-109, the transmitter T-784 comes with a GRA-71 burst coder connector on the front panel.
  The later AN/GRC-109A produced by Oklahoma Aerotronics comes with a carrying handle, hasp-typie lid fasteners, the dial window is integrated in the front panel and not screwed and the whole cabinet is more rugged.

• Mentioned in
• - - Manufacturers Literature (May 1962 Department of the Army Technical Manual TM 11-5820-474-14)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
