• Country
• Austria

• Manufacturer / Brand
• Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien

• Year
• 1974/1975

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 179400

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 36

• Semiconductors
• CA3089 µA767

• Main principle
• Superhet with RF-stage; ZF/IF 460/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 80 W (130 W max.)

• from Radiomuseum.org

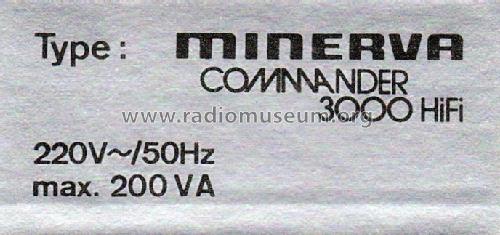

• Model: Commander 3000 HiFi - Minerva-Radio Radiola-

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 740 x 175 x 350 mm / 29.1 x 6.9 x 13.8 inch

• Notes

• Stereo & 4D Raumklang, zusätzlich gespreizte Mittelwelle, 3 x UKW Preomat,
  2 x 40/65 Sinus/Musik.

  Dieses Gerät "Commander 3000" wurde mit dem praktisch baugleichen Gerät "Orbit" von der Wiener Firma HEA hergestellt.

• Net weight (2.2 lb = 1 kg)
• 17.5 kg / 38 lb 8.7 oz (38.546 lb)

• Mentioned in
• (A) Radio Elektronik Schau; Heft 11, 1975 Werbeschaltung

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Rudolf Müller. See "Data change" for further contributors.
