- Country
- Austria
- Manufacturer / Brand
- Minerva-Radio (Radiola-Radioapparate und Bestandteile W. Wohleber & Co) ; Wien
- Year
- 1966
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 84289

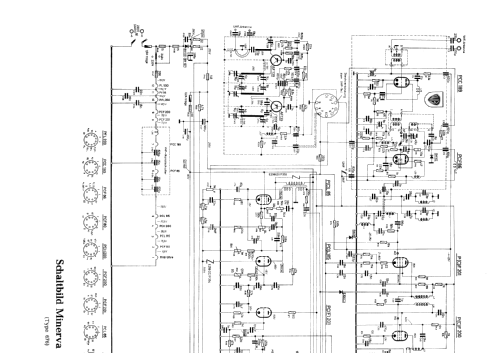

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 13
- Valves / Tubes
- PCC189 PCF86 PCF201 PCF200 PFL200 PCH200 PCL86 PCL85 PCF80 PL500 PY88 DY87 23DHP4 or 23DGP4
- Number of Transistors
- 2
- Main principle
- Superheterodyne (common)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- AC/DC-set / 220; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Supreme 676 - Minerva-Radio Radiola-
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 660 x 530 x 340 mm / 26 x 20.9 x 13.4 inch
- Notes
- Fernsehband I und III (Kanäle 2-12 und 2A), Band IV/V (Kanäle 20-60). 23-Zoll-Bildschirm.
- Net weight (2.2 lb = 1 kg)
- 30 kg / 66 lb 1.3 oz (66.079 lb)
- Source of data
- -- Original-techn. papers. / Radiokatalog Band 2, Ernst Erb
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
