• Country
• Germany

• Manufacturer / Brand
• Minix, Hannover

• Year
• 1975 ?

• Category
• Amateur Equipment (Other, but not Key)

• Radiomuseum.org ID
• 75218

• • Brand: Richter & Co; Hannover

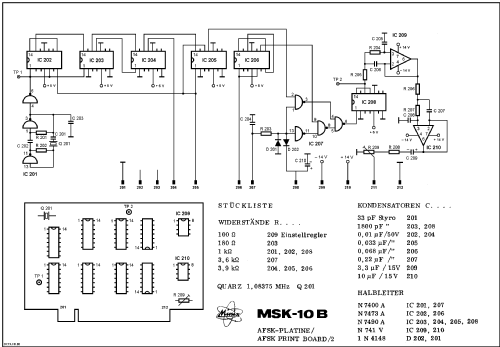

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• D3-11A or DG3-12A

• Number of Transistors
• 2

• Semiconductors
• BF257 2N3704

• Main principle
• RF Converter/Adapter (not voltage converter)

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: RTTY-Konverter MSK-10B - Minix, Hannover

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 210 x 150 x 290 mm / 8.3 x 5.9 x 11.4 inch

• Notes
• ICs: 17.

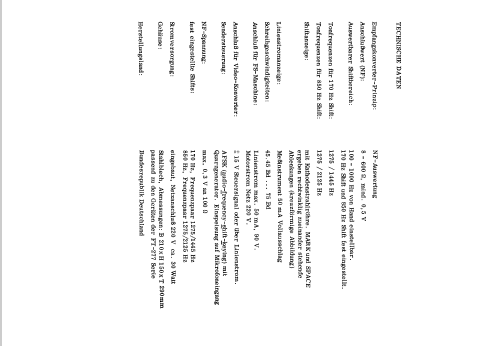

  Minix RTTY-Konverter MSK-10B.
  NF-Fernschreibzusatzgerät (Filterkonverter) mit AFSK-Generator für Sende- und Empfangsbetrieb. TTL- (zum Video-Konverter RVD-1002 o.a.) und Linienstromausgang.
  Passt zum Yaesu FR-101/FL-101 und FT-101 (FT-277).
  Gerät basiert auf den Entwicklungen von H. J. Pietsch, DJ6HP.

• Net weight (2.2 lb = 1 kg)
• 5 kg / 11 lb 0.2 oz (11.013 lb)

• Price in first year of sale
• 980.00 DM

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by a member from D. See "Data change" for further contributors.

• Other Models

• Here you find 46 models, 41 with images and 20 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Minix, Hannover
