• Country
• Soviet Union

• Manufacturer / Brand
• Moscow Radio engineering Works

• Year
• 1958 ?

• Category
• Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)

• Radiomuseum.org ID
• 93757

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 19

• Valves / Tubes
• 6Н3П 6Н3П 6Ж1П 6Ж1П 6Ж1П 6Ж1П 6П9 6Ж1П 6Ж1П 6Ж1П 6Ж1П 6П1П 6Н3П 6П1П 6Н1П 6П13С 1Ц11П 6Ц10П 35ЛК2Б

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

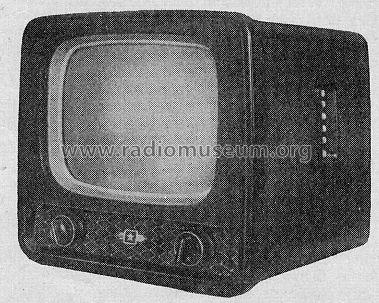

• Model: Start {Старт} - Moscow Radio engineering Works

• Shape
• Tablemodel, low profile (big size).

• Notes

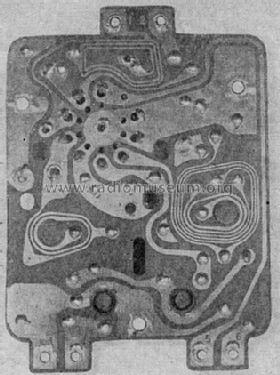

• With this Model the USSR starts with introducing of modules in the TV manufacturing. VHF I + III TV Tuner + Band II VHF Radio.

• Mentioned in
• Radio und Fernsehen 12/1958

• Author
• Model page created by a member from A. See "Data change" for further contributors.
