• Country
• United States of America (USA)

• Manufacturer / Brand
• Philco, Philadelphia Stg. Batt. Co.; USA

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 93602

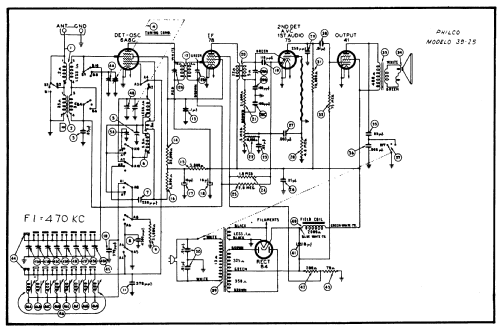

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A8G 78 75 41 84

• Main principle
• Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 39-25T - Philco, Philadelphia Stg. Batt

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 18.1 x 10.9 x 10.4 inch / 460 x 277 x 264 mm

• Notes

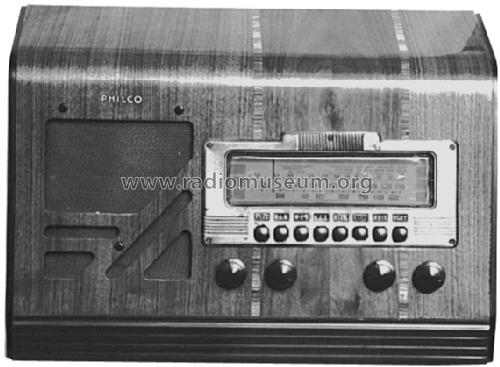

• Cabinet with sliced walnut and zebrano inlays.

  8 station preset push-buttons.

• Circuit diagram reference
• Rider's Perpetual, Volume 10 = 1939 and before

• Mentioned in
• Philco Radio 1928-1942

• Literature/Schematics (1)

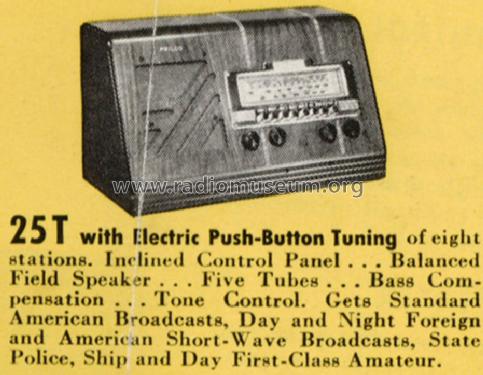

• Philco dealers promotion radio sales, 1941

• Literature/Schematics (2)
• Machine Age to Jet Age II (page 209.)

• Literature/Schematics (3)
• Philco Folder PR671 for 1939.

• Author
• Model page created by Vitor Oliveira. See "Data change" for further contributors.
