H-1814

Philco, Philadelphia Stg. Batt. Co.; USA

Data
Forum
Pictures
Collections

  • Year
  • 1959
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 134656

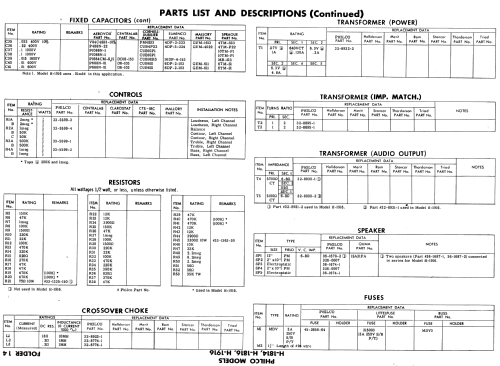

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Rec.Player+Audio.Amp+LS
  • Power type and voltage
  • Alternating Current supply (AC) / 105-120 Volt
  • Loudspeaker
  • 5 Loudspeakers / Ø 12 inch = 30.5 cm
  • Power out
  • 40 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

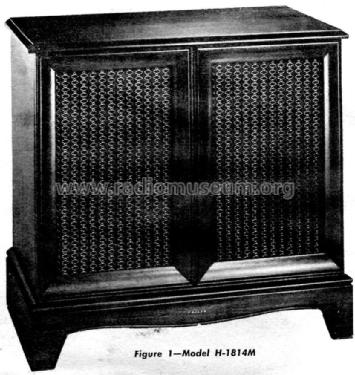

  • Model: H-1814 - Philco, Philadelphia Stg. Batt
  • Shape
  • Console, Lowboy (legs < 50 %).
  • Notes

  • The Philco Model H-1814 is an AC operated 9 Tube Stereo Phono Amplifier and a 4 Speed Record Changer. Uses Record Changer M-45 with speeds of 16-2/3, 33-1/3, 45 and 78 RPM. This model has 3 separate units, a main unit and two speaker enclosures. The main unit contains the record changer, amplifier and Qty(1) 12" PM speaker. Each speaker enclosure contains Qty(1) 2"x10' Elliptical PM speaker and Qty(1) "P" type electrostatic speaker. Cabinets are Cherry, Mahogany or Walnut. Sams photofact set 484 folder 14 date 5-60 features the Philco models H-1814, H-1816 and H-1916 as the same schematic.

    For details of the swivel speakers see the Electrostatic swivel speaker model page.

  • Literature/Schematics (1)
  • Philco Home Radio Yearbook 1960
  • Literature/Schematics (2)
  • - - Manufacturers Literature
  • Author
  • Model page created by Thomas Albrecht. See "Data change" for further contributors.
