• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1929 ?

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 227135

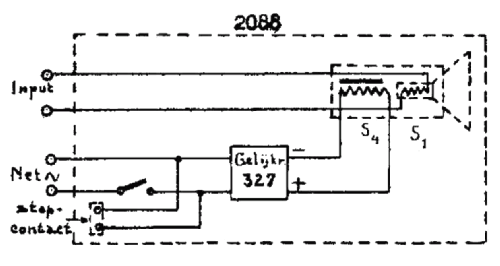

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 328 329

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker

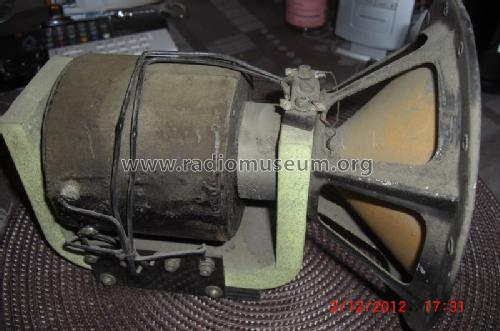

• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Special material, described in the notes.

• from Radiomuseum.org
• Model: 2088 [Flared legs] - Philips; Eindhoven tubes

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 530 x 800 x 260 mm / 20.9 x 31.5 x 10.2 inch

• Notes

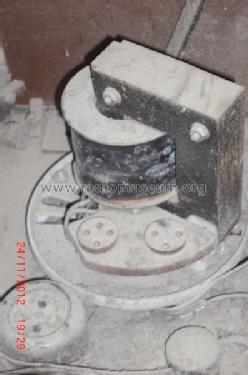

• Built-in rectifier unit Philips Akku-Ladegerät 327.
  Power loudspeaker for the Philips 2511 receiver.

  There is also a variant with straight legs, front logo, and bigger speaker chassis.

  Cabinet material: arbolite panels supported by a metal frame.

• Author
• Model page created by Jean-Louis HEYD. See "Data change" for further contributors.
