845 A
Philips - Schweiz
- Country
- Switzerland
- Manufacturer / Brand
- Philips - Schweiz
- Year
- 1941–1944
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 13327

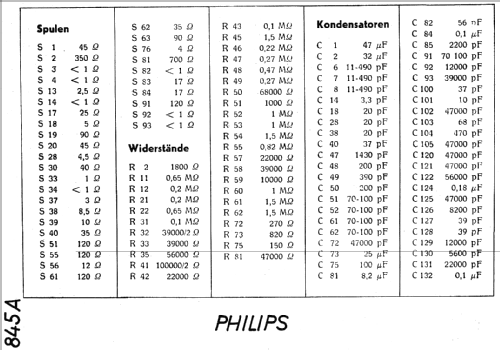

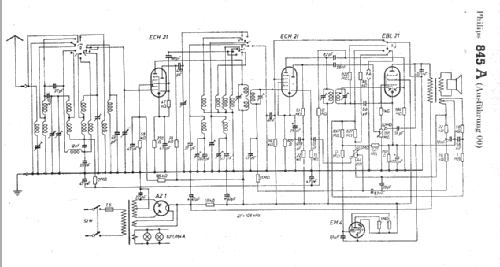

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 128 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110-240 Volt
- Loudspeaker
- Permanent or electro-dynamic (moving coil), system not known yet. / Ø 21.5 cm = 8.5 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: 845 A - Philips - Schweiz
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 570 x 325 x 235 mm / 22.4 x 12.8 x 9.3 inch
- Net weight (2.2 lb = 1 kg)
- 11 kg / 24 lb 3.7 oz (24.229 lb)
- Price in first year of sale
- 470.00 SFr
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Thali-Schemasammlung und Tungsram-Röhrenbestückung.
- Literature/Schematics (3)
- Philips Folder for 1943/1944.
- Picture reference
- Das Modell ist im «Radiokatalog» (Erb) abgebildet.
