- Country
- Spain
- Manufacturer / Brand
- Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona
- Year
- 1973
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 170225

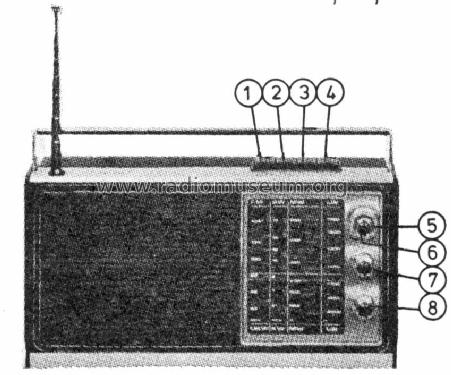

Sacada del manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 11
- Main principle
- Superheterodyne (common); ZF/IF 452/10700 kHz
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Dry Batteries / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 90-RL-411 /00 - Philips Ibérica, COPRESA,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 270 x 140 x 55 mm / 10.6 x 5.5 x 2.2 inch
- Notes
- Del modelo Philips 90-RL-411 existen dos versiones, /00 y /03. El manual se sube a ambos modelos y en él hay que buscar las correspondientes diferencias entre ambos.
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
