• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1984 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 194415

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / 6 x 1,5 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

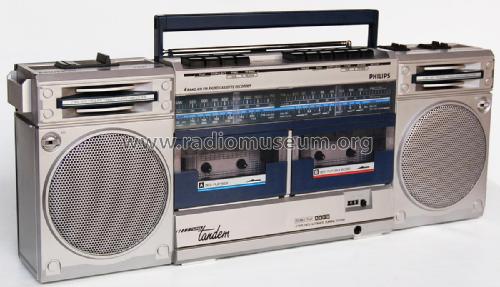

• Model: AM/FM Radio Cassette Recorder - Super Tandem D8334 /00 /05 /00R /05R - Philips - Österreich

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 560 x 220 x 100 mm / 22 x 8.7 x 3.9 inch

• Notes

• The Philips D8334 /00R /05R is identical to D8334 /00 /05 however with differently coloured cabinet parts.

  Rundfunkteil mit AFC, 2 Basslautsprecher und 2 Hochtöner, Doppel-Cassetten-Deck mit Überspieleinrichtung, 2 eingebaute Mikrofone.

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Günter Döring. See "Data change" for further contributors.
