• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1966–1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 26729

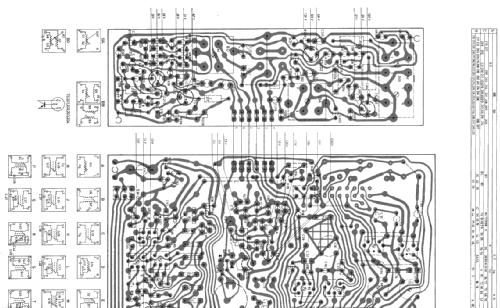

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 14

• Semiconductors
• AF102 AF121 AF125 AF186 AF125 AF125 AF121 AC126 AC126 AC126 AC126 AC125 AC125 AC127

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz

• Tuned circuits
• 9 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Wired Wireless Receiver (RF!)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org

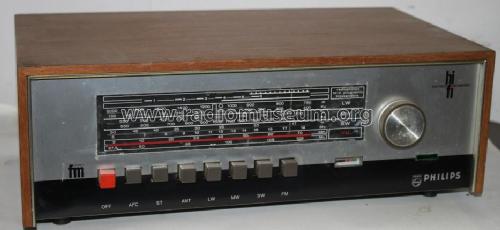

• Model: Hi-Fi AM-FM Tuner 22GH924 /00 - Philips; Eindhoven tubes

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 377 x 123 x 215 mm / 14.8 x 4.8 x 8.5 inch

• Notes
• Philips Hi-Fi AM-FM Tuner 22GH924 (AG9024).

• Net weight (2.2 lb = 1 kg)
• 4.5 kg / 9 lb 14.6 oz (9.912 lb)

• Price in first year of sale
• 4,690.00 ATS

• External source of data
• erb

• Source of data
• Handbuch VDRG 1966/1967

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Original-techn. papers.

• Literature/Schematics (2)
• Österreichischer Radioschau, Heft 9, 1966, Seite 466
