• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1963

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 84411

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 22

• Valves / Tubes
• PC88 PC86 PCC189 PCF86 EF183 EF184 EF184 PCL84 PCF80 PCF80 PCL85 PCL86 ECH83 PCF80 PF86 PCL85 ECH83 PCF80 PL500 PY88 DY87 AW47-91

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

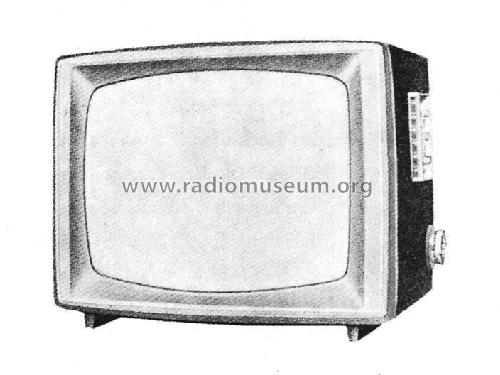

• Model: Ariston 19TA332A /00B /70B Ch= P1a - Philips - Österreich

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 480 x 390 x 340 mm / 18.9 x 15.4 x 13.4 inch

• Notes

• Empfangsbereich VHF (I+III), UHF (IV/V).
  2 Ausführungen:
  /00B = dunkel hochglänzend;
  /70B = hell matt.
  Preis für UHF-vorbereitet: 5345.- öS.

  Parallelgerät zum Horny W48T233A.

• Net weight (2.2 lb = 1 kg)
• 20 kg / 44 lb 0.8 oz (44.053 lb)

• Price in first year of sale
• 5,895.00 öS

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Hannes Wurnitsch. See "Data change" for further contributors.
