• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1947/1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29852

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

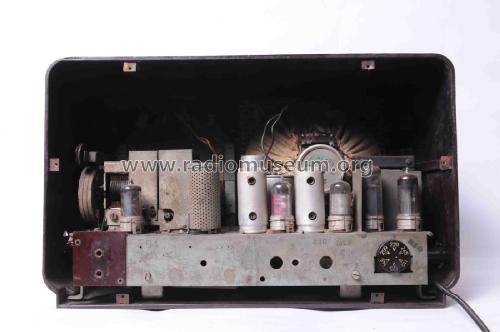

• UF41 UCH41 UAF41 UAF41 UL41 UY41

• Main principle
• Superhet with RF-stage; ZF/IF 452 kHz

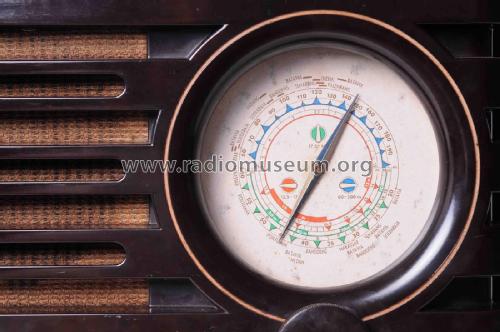

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• AC/DC-set / 110-245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

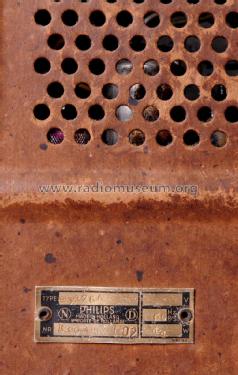

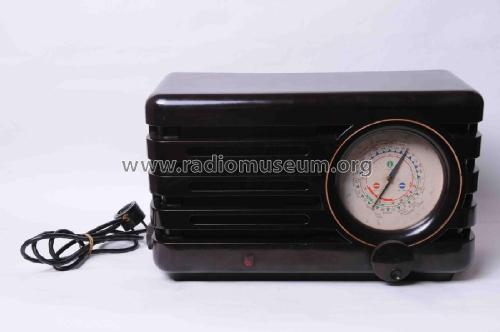

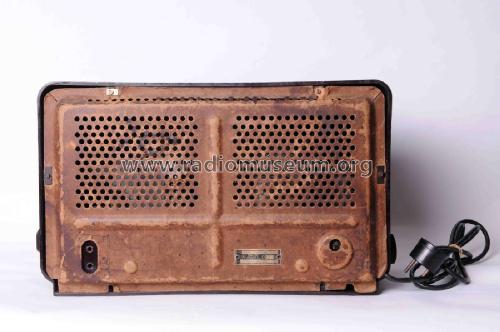

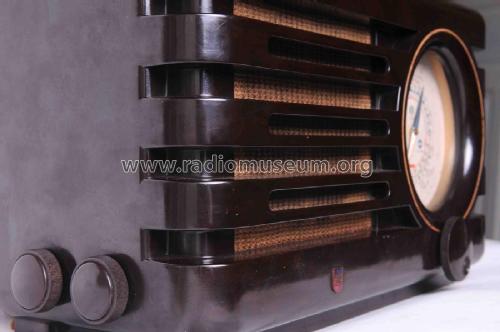

• Model: BX376A - Philips; Eindhoven tubes

• Dimensions (WHD)
• 435 x 245 x 195 mm / 17.1 x 9.6 x 7.7 inch

• Notes
• 3 KW Bereiche

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
